APEX DESIGN RAPID PRECISION STD AIR VALVE 4PC SET

6505AX0202001

RAYS Official Gear

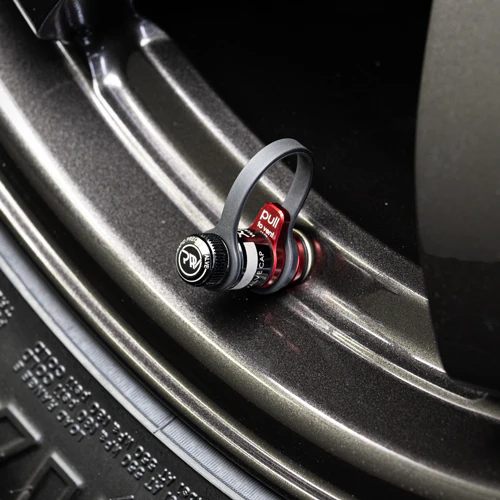

The APEX Rapid Precision Valve (RPV) is an ultra-fast and precise pneumatic adjustment valve developed for off-road enthusiasts and 4WD users. The APEX Rapid Precision Valve is a patented, innovative, high-speed retractable air valve. You can quickly deflate the tire with just one touch. (Less than 35 seconds from 35psi to 10psi on 15" tires) By replacing the standard valve stem, the tire can be quickly deflated without removing the valve core.
Compatible to:
TE37XT 1775 35 5-127/71.6, TE37XT 1780 0 6-139, TE37XT 1785 -10 6-139, TE37XT 1880 20 6-139, TE37XT 1890 0 6-139, TE37XT-MS 1895 0 5-150, ZE40X F2 1780 0 6-139.7, ZE40X F2 1785 0 6-139.7, ZE40X F3 1790 -10 6-139.7, 05X F3 1780 0 5-150, 05X F3 1780 -25 5-150, 05X F3 1785 -10 6-139, 05X F3 1790 -20 6-139
Guide : Protrusion, R contact = Contacts the R (radius), Flat seat = With flat seat machining
With Protusion
TE37XT 1665 38 6-139, TE37XT 1680 0 6-139, TE37XT FOR J 1655 0 5-139, TE37XT FOR J 1660 -5 5-139, TE37XT M-SPEC for J 1655 0 5-139.7, TE37XT M-SPEC for J 1660 -5 5-139.7, TE37XT M-SPEC for J 1675 0 5-139.7, TE37XT M-SPEC for J 1685 -19 5-139.7, 07X F2 1655 20 5-139, 07X F3 1660 -5 5-139, 07X F1 1765 38 6-139, 07X F3 1780 0 6-139, 07X F3 1785 -10 6-139
With R Contact : TE37SB F2 1765 37 6-139, TE37SB F2 1880 30 6-139, TE37SB F3 1885 22 6-139, TE37LARGE-PM2 F1 1885 44 6-139, TE37LARGE-PM2 F2 1890 0 6-139, TE37ULTRA LARGE 1880 0 6-139.7, TE37ULTRA LARGE 1885 52 6-139.7、TE37ULTRA LARGE 1890 50 6-139.7、A-LAP-J PRO F3 1650 -18 5-139、A-LAP-J PRO F1 1655 21 5-139、A-LAP-J PRO F2 1660 -6 5-139、07X F2 1870 -2 5-139、07X F0 1880 20 6-139、07X F0 1885 44 6-139、07X F2 1890 0 6-139、57DR-X 1655 0 5-139、57DR-X 1780 0 6-139、57DR-X 1785 00 6-139、57DR-X 1880 7 6-114、57DR-X 1885 52 6-139、57DR-X 1890 0 6-139、57DR-X HD 1665 38 6-139.7、57DR-X HD 1785 -20 6-139.7、57DR-X HD 1890 0 6-139.7、57FR-X 1655 0 5-139.7、57FR-X 1660 -5 5-139.7、57FR-X 1665 -12 5-139.7、57FR-X 1670 -15 5-139.7、57JV 1655 20 5-139、57XR-X 1660 5 5-139、57XR-X 1665 38 6-139、57XR-X 1780 00 6-139、57TRANS-X 1880 20 6-139、D9 1665 38 6-139.7、D9 1785 -20 6-139.7、D9 1885 52 6-139.7、D9 1890 -10 6-139.7、D325 1780 0 6-139.7、D325 1785 -10 6-139.7、D108 1660 -5 5-139.7、D108 1780 0 6-139、D108 1785 -20 6-139.7、D108 1880 20 6-139、D108 1885 52 6-139.7、ROW D108 1890 0 6-139、M6 1890 -10 6-139.7、M9+ 1655 20 5-139、M9+ 1660 -5 5-139、M9+ 1665 38 6-139、M9+ 1770 40 5-127、M9+ 1780 0 6-139、ROW M9+ 1785 -10 6-139、M8 1660 -5 5-139、M8 1665 38 6-139、M8 1770 40 5-127、M8 1785 0 6-139、M8 2090 47 6-139、F6 BOOST 1655 20 5-139、F6 BOOST 1660 -5 5-139、F6 BOOST 1780 20 6-139、FDX-F6 1780 20 6-139、FDX-F6 1880 20 6-139、F6 GAIN 1780 20 6-139、F6 GAIN 2085 22 6-139、FDX-J 1655 0 5-139
With Flat Seat : TE37ULTRA X F2 2085 20 6-139.7, TE37ULTRA X F3 2095 0 6-139.7, TE37ULTRA X F1 2095 35 5-150, TE37ULTRA X F3 22100 48 6-139.7, TE37ULTRA X F4 2290 20 6-139.7

If you have a genuine Toyota or Japanese TPMS sensor, you will need to purchase the APEX RPV TPMS ADAPTER KIT 4PC SET, which is sold separately.

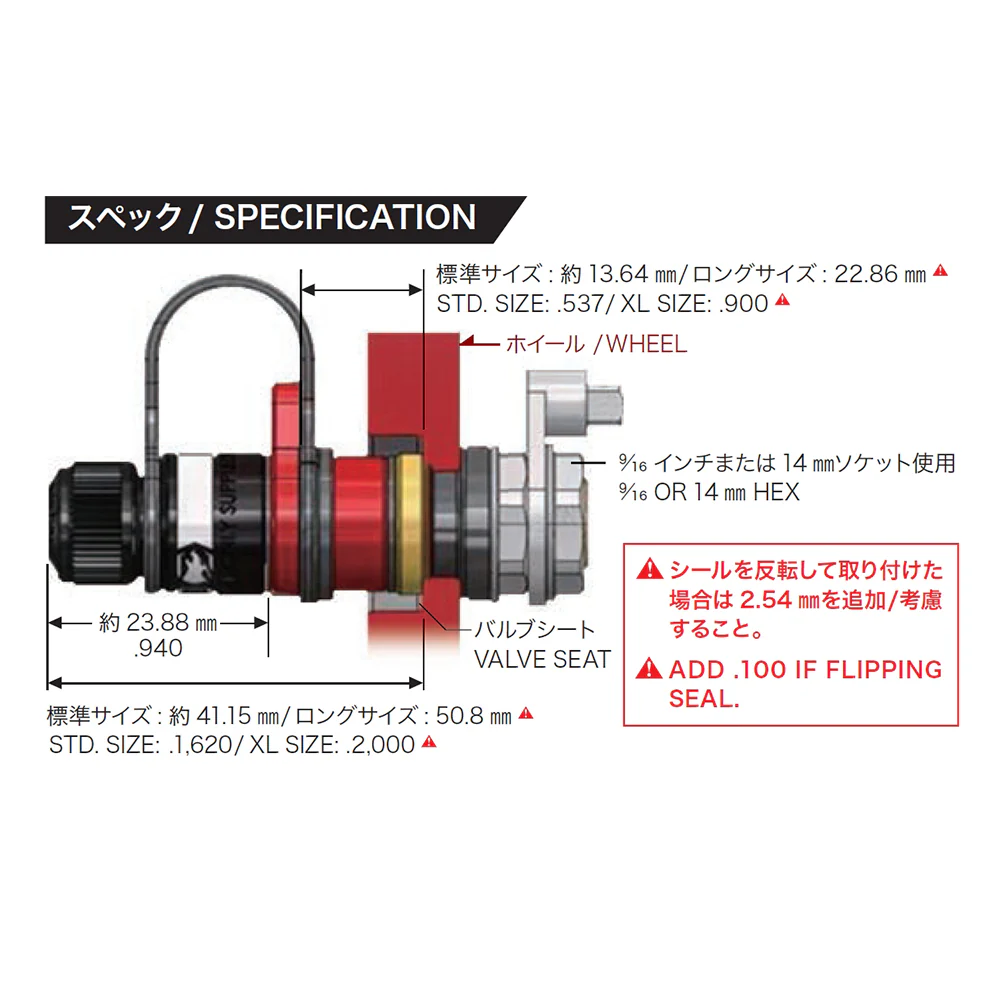

*All lists of installation options will be confirmed on the drawings. Basically, it can be installed, but the black parts made of resin are about 18mm in diameter, and most of the items are in contact with the side of the valve hole. Please note.

Images are for illustration purpose only. Actual product may vary.
