LARGUS SPEC K COILOVER KIT FOR SUZUKI HUSTLER MR52S 2WD 01015108013-QQ-1
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015108013-QQ-1 |
| Compatible Car | SUZUKI HUSTLER MR52S 2WD |

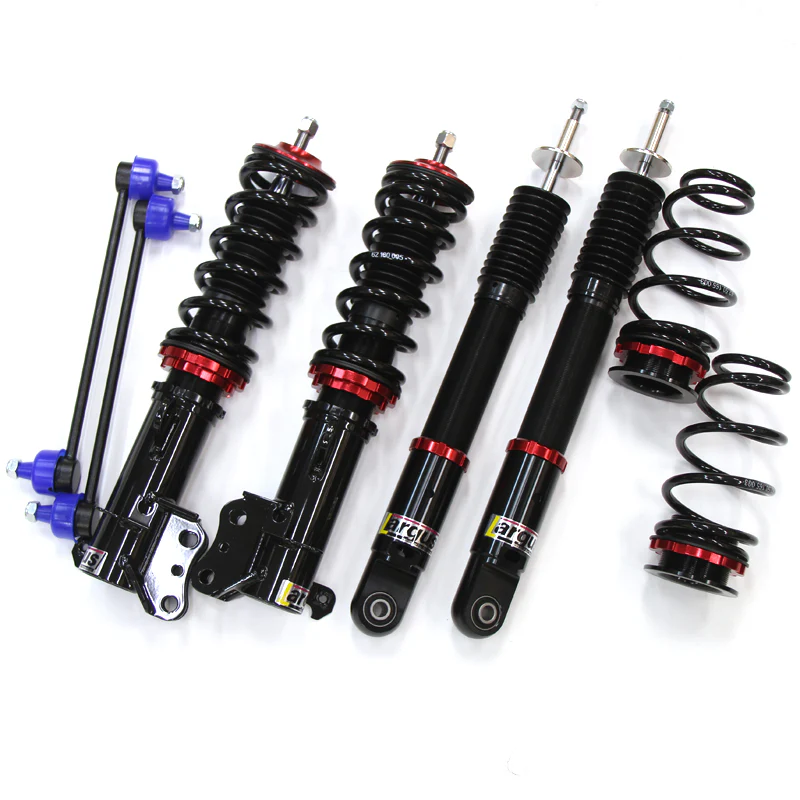

| Product Description | Product: Full-length adjustable suspension kit Type: SpecK Manufacturer: SUZUKI Model: Hustler Vehicle model: MR52S Year: 2020/01~ Drive system: 2WD Frequency: 5kg Rear: 3kg Free length: Fr: 180mm Free length: Rr: 165mm Upper mount: Front: Mountless Upper mount: Mountless Frequency: Damping position: Fixed by dial (upper upper mount) Rear: Damping position: Fixed by dial (upper upper mount) Ride height adjustment range: Fr: 585mm - 660mm Rear height adjustment range: Rr: 628mm - 679mm Lowering amount: Fr: -69mm to +6mm Down R: -51mm to 0mm |

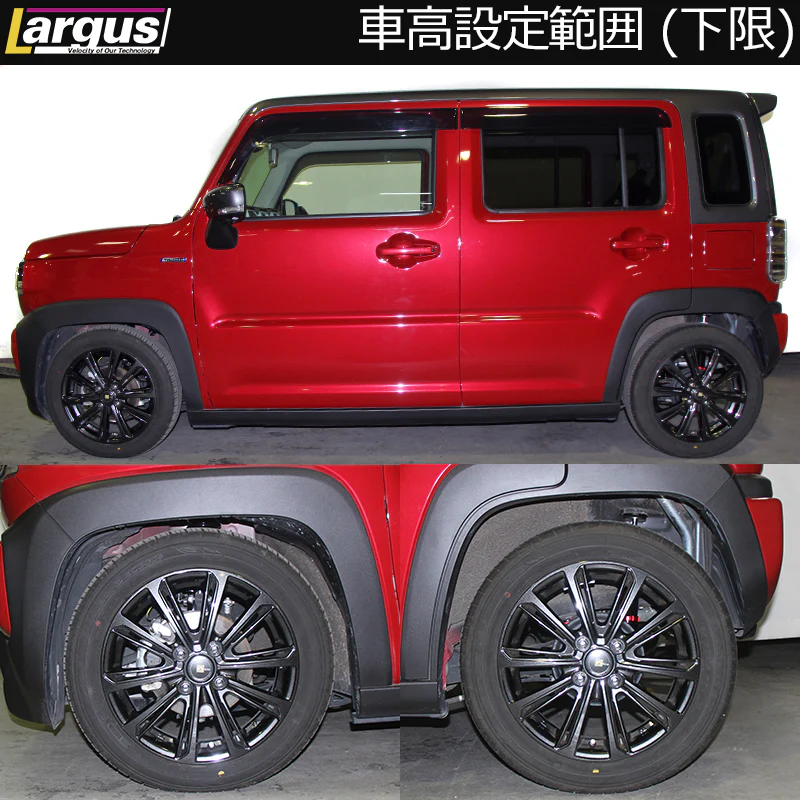

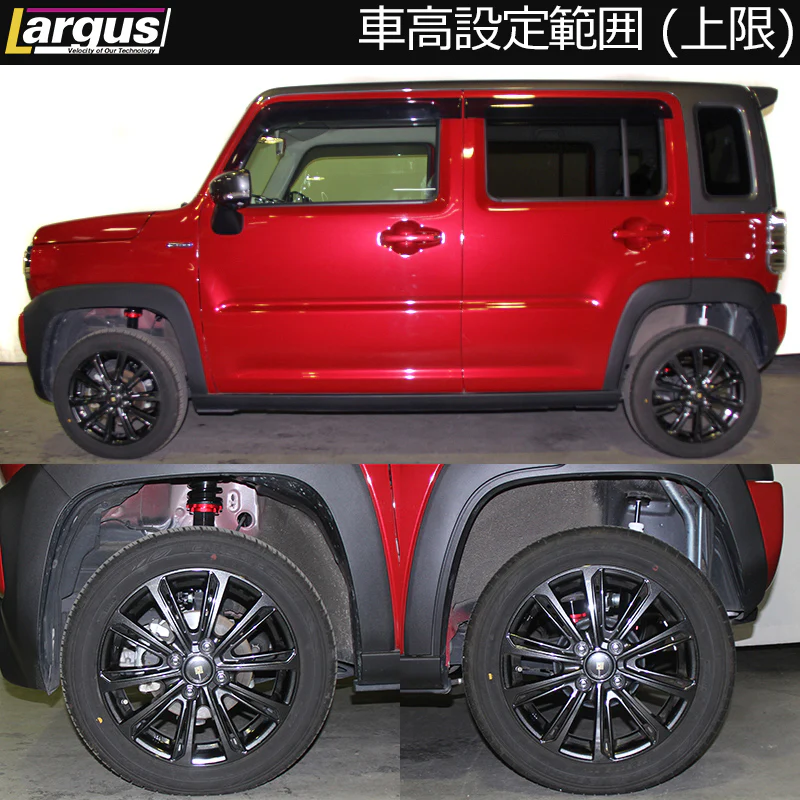

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015108013-QQ-1 |
| Compatible Car | SUZUKI HUSTLER MR52S 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecK Manufacturer: SUZUKI Model: Hustler Vehicle model: MR52S Year: 2020/01~ Drive system: 2WD Frequency: 5kg Rear: 3kg Free length: Fr: 180mm Free length: Rr: 165mm Upper mount: Front: Mountless Upper mount: Mountless Frequency: Damping position: Fixed by dial (upper upper mount) Rear: Damping position: Fixed by dial (upper upper mount) Ride height adjustment range: Fr: 585mm - 660mm Rear height adjustment range: Rr: 628mm - 679mm Lowering amount: Fr: -69mm to +6mm Down R: -51mm to 0mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$1.67
Original: $4.76
-65%LARGUS SPEC K COILOVER KIT FOR SUZUKI HUSTLER MR52S 2WD 01015108013-QQ-1—
$4.76
$1.67Description
