LARGUS

SPEC D COILOVER KIT

01011303005-QQ-1

HONDA INTEGRA DC5 2WD

Car Manufacturer: Honda
Model: Integra
Vehicle Model: DC5
Year: 2001/07-2007/02
Drive System: 2WD

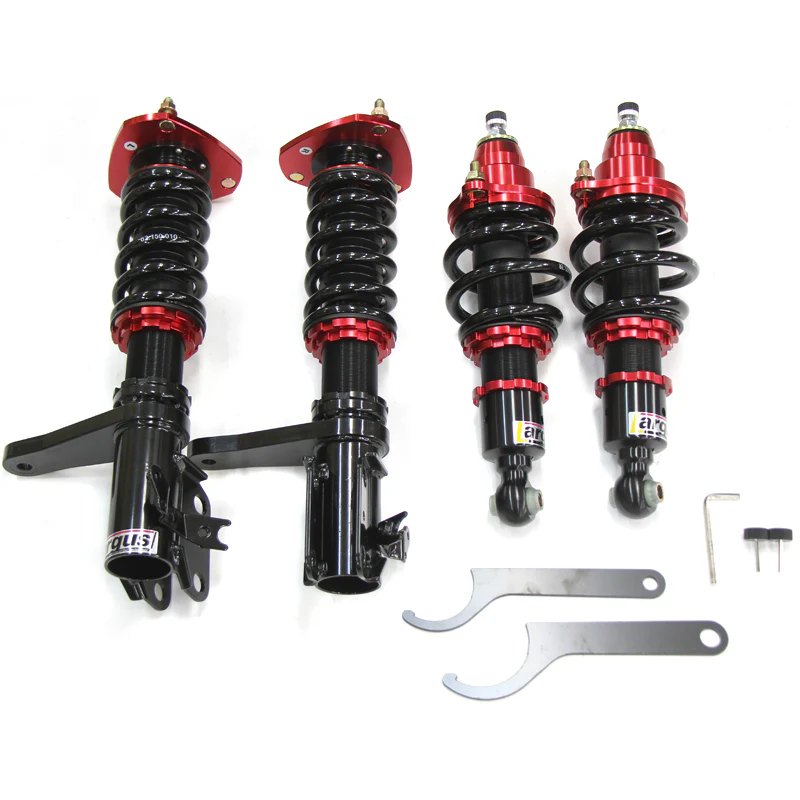

Product: Full-Length Adjustable Suspension Kit Spec D
Spring Rate F: 10kg
Spring Rate R: 12kg
Free Length F: 150mm
Free Length R: 120mm
Upper Mount F: Adjustable Pillow
Upper Mount R: Fixed Reinforced Rubber
F Damping Position: Separate Dial (Upper Mount)
F Damping Position R: Fixed Dial (Upper Mount)

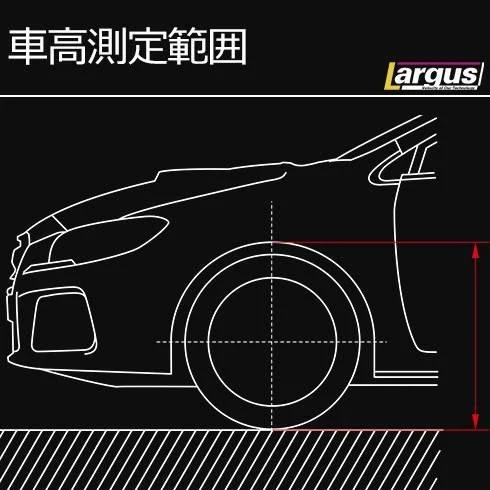

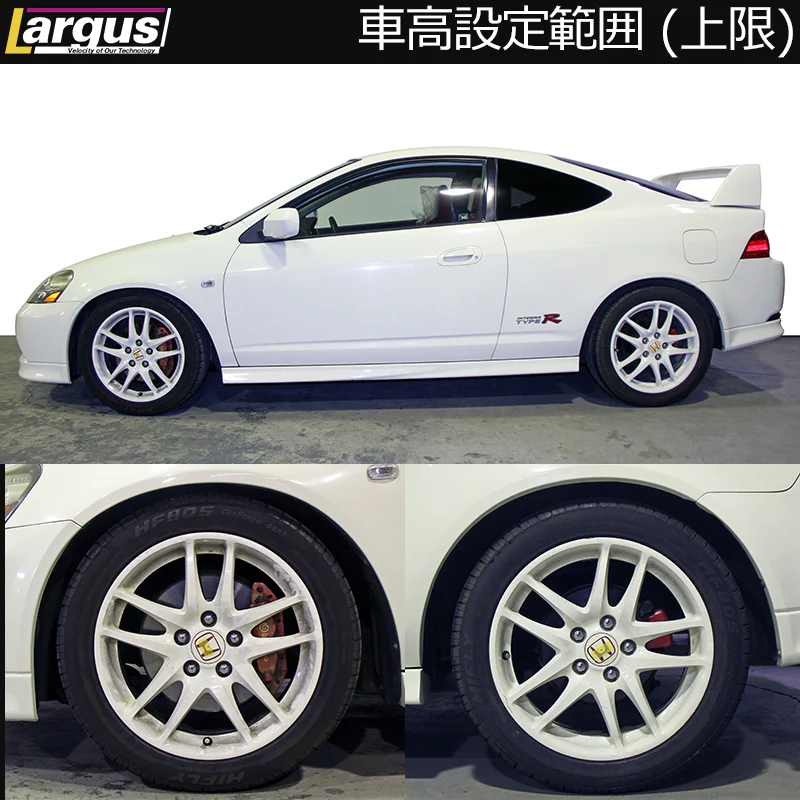

Vehicle Height Adjustment Range F (Reference Value): 599mm-647mm
Vehicle Height Adjustment Range R (Reference Value): 625mm to 657mm
Downward adjustment F (reference value): -75mm to -27mm
Downward adjustment R (reference value): -62mm to -30mm

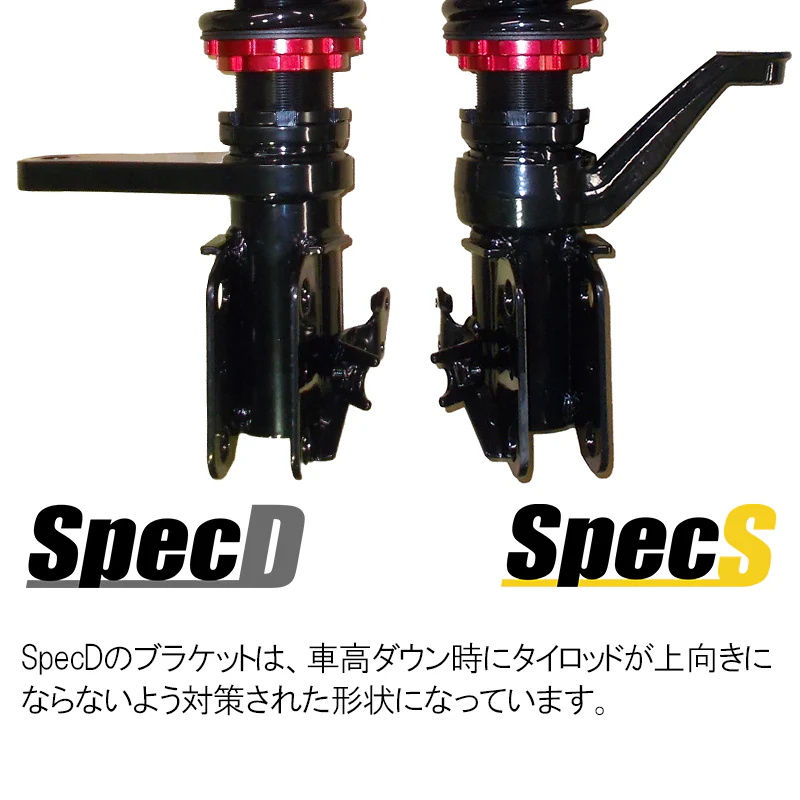

For both Type-R and Type-S: When using the front at the upper limit of the vehicle height adjustment range, the tie rod and body will be close together, which may result in interference, so please be careful when setting it up. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle differences and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
