LARGUS

SPEC S IMPORT COILOVER KIT

01011238003-QQ-1

RENAULT LUTECIA RM5M 2WD

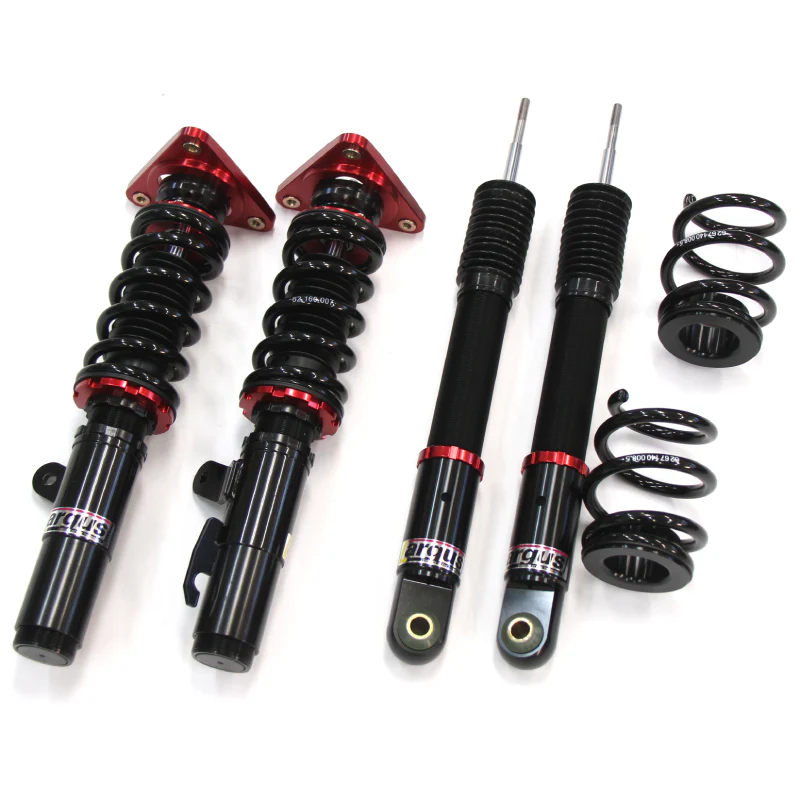

Product: Full-length adjustable suspension kit
Type: SpecS Import
Manufacturer: RENAULT
Model: LUTECIA
Vehicle model: RM5M
Year: 2013/11-2020/11
Drive system: 2WD
Frequency: 6kg
Rear: 6kg
Free length: 170mm
Free length: 163mm
Front upper mount: Adjustable pillow
Rear upper mount: Fixed reinforced rubber
Front damping position: Separate dial (upper upper mount)
Rear damping position: Fixed dial (upper upper mount)

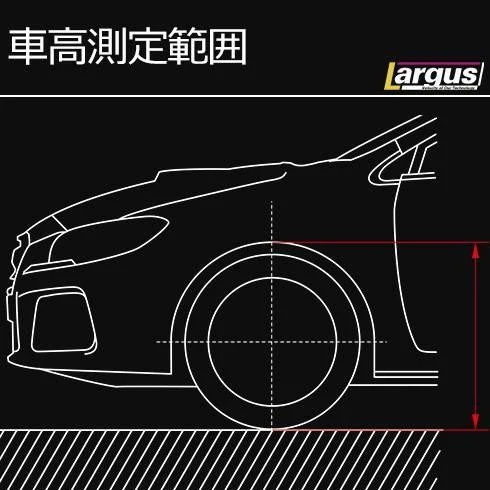

Front height adjustment range: 612mm-642mm
Rear height adjustment range: 613mm to 646mm
F Lowering Amount: -33mm to -3mm
R Lowering Amount: -29mm to +4mm

The vehicle height adjustment range and lowering amount are based on the RM5M1. Depending on the vehicle, the factory front fixing stay may interfere with the lower bracket of this product. If this occurs, modify the stay and install the product. (Dedicated instruction manual included.) Adjusting the front damping force and camber angle requires removing and installing the coilovers. *The vehicle height setting range, lowering amount, and installation images are reference values based on a development vehicle. Individual vehicle differences and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
