LARGUS SPEC S IMPORT COILOVER KIT FOR MERCEDES BENZ C-CLASS W204 2WD 01011233002-QQ-1309
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011233002-QQ-1309 |
| Compatible Car | MERCEDES BENZ C-CLASS W204 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: Mercedes Benz Model: C-Class Vehicle model: W204 Year: 2007/06~ Drive system: 2WD Spring rate (F): 6kg Spring rate (R): 11kg Free length (F): 210mm Free length (R): 210mm Upper mount (F): Mountless Upper mount (R): Fixed reinforced rubber Damping position (F): Dial fixed (top of upper mount) Damping position (R): Disc type (inside wheel well) Vehicle height adjustment range (F): 603mm - 678mm Vehicle height adjustment range (R): 611mm - 675mm Lowering amount (F): -52mm to +23mm Down R: -61mm to +3mm |

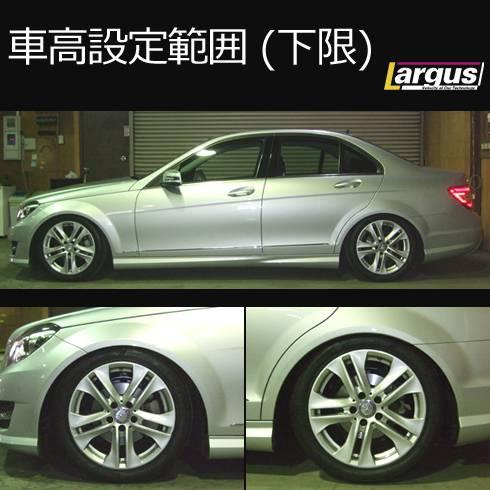

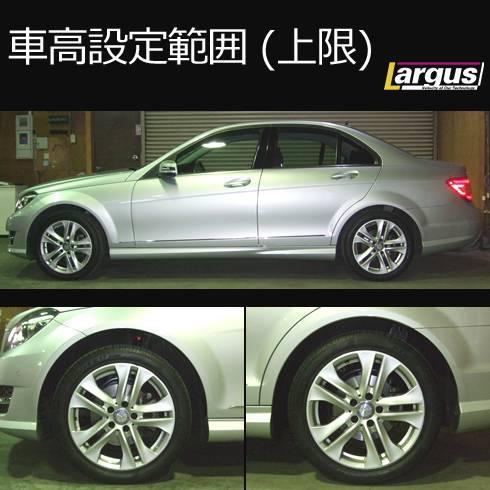

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011233002-QQ-1309 |
| Compatible Car | MERCEDES BENZ C-CLASS W204 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: Mercedes Benz Model: C-Class Vehicle model: W204 Year: 2007/06~ Drive system: 2WD Spring rate (F): 6kg Spring rate (R): 11kg Free length (F): 210mm Free length (R): 210mm Upper mount (F): Mountless Upper mount (R): Fixed reinforced rubber Damping position (F): Dial fixed (top of upper mount) Damping position (R): Disc type (inside wheel well) Vehicle height adjustment range (F): 603mm - 678mm Vehicle height adjustment range (R): 611mm - 675mm Lowering amount (F): -52mm to +23mm Down R: -61mm to +3mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
