LARGUS SPEC S IMPORT COILOVER KIT FOR MERCEDES BENZ A-CLASS A180 2WD 01011233001-QQ-1304
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011233001-QQ-1304 |
| Compatible Car | MERCEDES BENZ A-CLASS A180 2WD |
| Product Description | Car Manufacturer: Mercedes Benz Vehicle Model: A-Class Vehicle Model: A180 Year: 2012.11~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 6kg Spring Rate R: 6kg Free Length F: 180mm Free Length R: 160mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 610mm - 688mm Vehicle Height Adjustment Range R (Reference Value): 648mm - 683mm Lowering Amount F (Reference Value): -60mm to +18mm Down amount R (reference value): -43mm to -8mm |

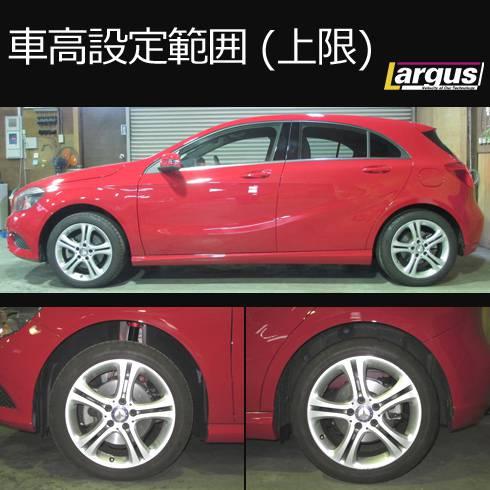

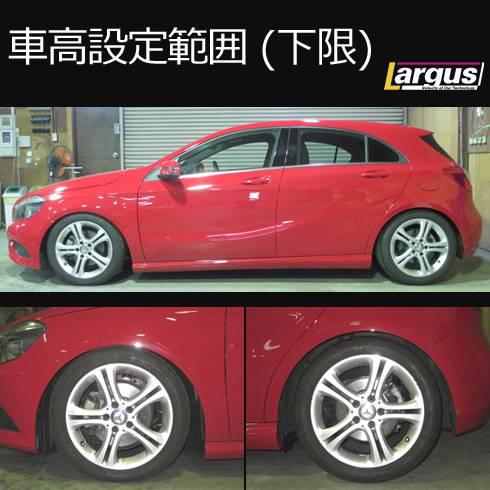

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011233001-QQ-1304 |
| Compatible Car | MERCEDES BENZ A-CLASS A180 2WD |
| Product Description | Car Manufacturer: Mercedes Benz Vehicle Model: A-Class Vehicle Model: A180 Year: 2012.11~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 6kg Spring Rate R: 6kg Free Length F: 180mm Free Length R: 160mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 610mm - 688mm Vehicle Height Adjustment Range R (Reference Value): 648mm - 683mm Lowering Amount F (Reference Value): -60mm to +18mm Down amount R (reference value): -43mm to -8mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$5.72
LARGUS SPEC S IMPORT COILOVER KIT FOR MERCEDES BENZ A-CLASS A180 2WD 01011233001-QQ-1304—
$5.72
Description
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011233001-QQ-1304 |
| Compatible Car | MERCEDES BENZ A-CLASS A180 2WD |
| Product Description | Car Manufacturer: Mercedes Benz Vehicle Model: A-Class Vehicle Model: A180 Year: 2012.11~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 6kg Spring Rate R: 6kg Free Length F: 180mm Free Length R: 160mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 610mm - 688mm Vehicle Height Adjustment Range R (Reference Value): 648mm - 683mm Lowering Amount F (Reference Value): -60mm to +18mm Down amount R (reference value): -43mm to -8mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
