LARGUS SPEC S IMPORT COILOVER KIT FOR CITROEN DS3 A5C5F04 2WD 01011225001-QQ-1387
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011225001-QQ-1387 |
| Compatible Car | CITROEN DS3 A5C5F04 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: CITROEN Model: DS3 Vehicle model: A5C5F04 Year: - Drive system: 2WD Spring rate (F): 5kg Spring rate (R): 2.5kg Free length (F): 200mm Free length (R): 200mm Upper mount (F): Mountless Upper mount (R): Mountless Damping position (F): Dial-fixed (top of upper mount) Damping position (R): Disc-type (inside wheelhouse) Vehicle height adjustment range (F): 615mm - 664mm Vehicle height adjustment range (R): 624mm - 665mm Lowering amount (F): -49mm to 0mm Down amount R: -48mm to 0mm |

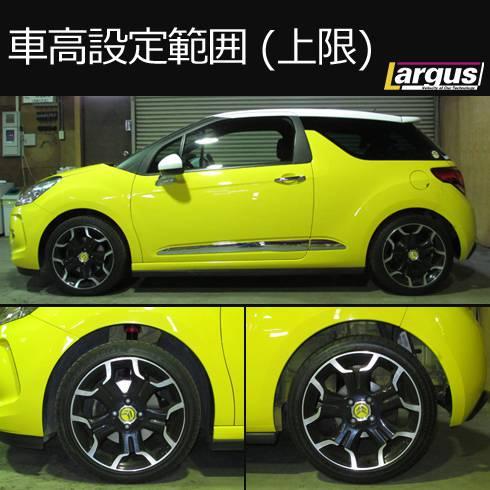

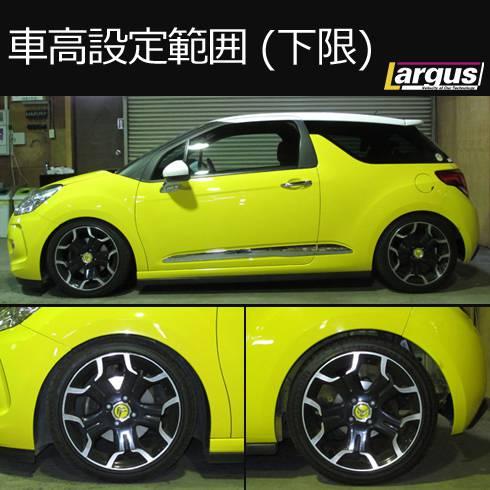

| Remarks | Important note: For vehicles with a 51mm strut diameter. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011225001-QQ-1387 |
| Compatible Car | CITROEN DS3 A5C5F04 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: CITROEN Model: DS3 Vehicle model: A5C5F04 Year: - Drive system: 2WD Spring rate (F): 5kg Spring rate (R): 2.5kg Free length (F): 200mm Free length (R): 200mm Upper mount (F): Mountless Upper mount (R): Mountless Damping position (F): Dial-fixed (top of upper mount) Damping position (R): Disc-type (inside wheelhouse) Vehicle height adjustment range (F): 615mm - 664mm Vehicle height adjustment range (R): 624mm - 665mm Lowering amount (F): -49mm to 0mm Down amount R: -48mm to 0mm |
| Remarks | Important note: For vehicles with a 51mm strut diameter. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$2.04
Original: $5.84
-65%LARGUS SPEC S IMPORT COILOVER KIT FOR CITROEN DS3 A5C5F04 2WD 01011225001-QQ-1387—
$5.84
$2.04Description
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011225001-QQ-1387 |
| Compatible Car | CITROEN DS3 A5C5F04 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: CITROEN Model: DS3 Vehicle model: A5C5F04 Year: - Drive system: 2WD Spring rate (F): 5kg Spring rate (R): 2.5kg Free length (F): 200mm Free length (R): 200mm Upper mount (F): Mountless Upper mount (R): Mountless Damping position (F): Dial-fixed (top of upper mount) Damping position (R): Disc-type (inside wheelhouse) Vehicle height adjustment range (F): 615mm - 664mm Vehicle height adjustment range (R): 624mm - 665mm Lowering amount (F): -49mm to 0mm Down amount R: -48mm to 0mm |
| Remarks | Important note: For vehicles with a 51mm strut diameter. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
