LARGUS SPEC S IMPORT COILOVER KIT FOR AUDI A1 8X 2WD 01011222003-QQ-1317
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011222003-QQ-1317 |
| Compatible Car | AUDI A1 8X 2WD |
| Product Description | Car Manufacturer: AUDI Vehicle Model: A1 Vehicle Model: 8X Year: 2011.01~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 5kg Spring Rate R: 3kg Free Length F: 200mm Free Length R: 180mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 600mm - 645mm Vehicle Height Adjustment Range R (Reference Value): 593mm - 630mm Lowering Amount F (Reference Value): -42mm to +3mm Down amount R (reference value): -62mm to -25mm |

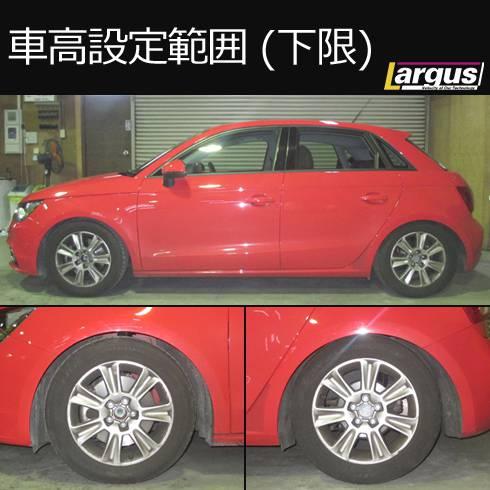

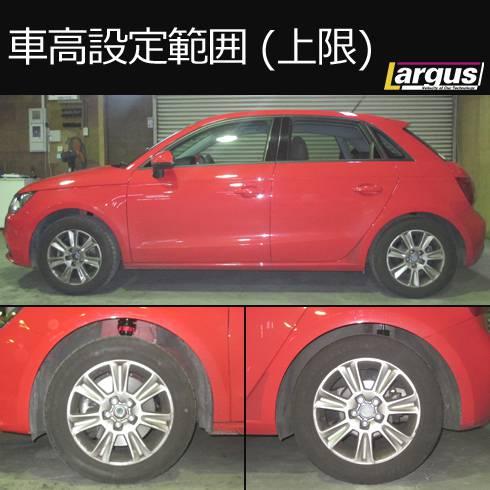

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011222003-QQ-1317 |
| Compatible Car | AUDI A1 8X 2WD |
| Product Description | Car Manufacturer: AUDI Vehicle Model: A1 Vehicle Model: 8X Year: 2011.01~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 5kg Spring Rate R: 3kg Free Length F: 200mm Free Length R: 180mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 600mm - 645mm Vehicle Height Adjustment Range R (Reference Value): 593mm - 630mm Lowering Amount F (Reference Value): -42mm to +3mm Down amount R (reference value): -62mm to -25mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$5.72
LARGUS SPEC S IMPORT COILOVER KIT FOR AUDI A1 8X 2WD 01011222003-QQ-1317—
$5.72
Description
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011222003-QQ-1317 |
| Compatible Car | AUDI A1 8X 2WD |
| Product Description | Car Manufacturer: AUDI Vehicle Model: A1 Vehicle Model: 8X Year: 2011.01~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 5kg Spring Rate R: 3kg Free Length F: 200mm Free Length R: 180mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 600mm - 645mm Vehicle Height Adjustment Range R (Reference Value): 593mm - 630mm Lowering Amount F (Reference Value): -42mm to +3mm Down amount R (reference value): -62mm to -25mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
