LARGUS SPEC S IMPORT COILOVER KIT FOR AUDI A6 QUATTRO 4BA## 2WD 4WD 01011222001-QQ-1322
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011222001-QQ-1322 |
| Compatible Car | AUDI A6 QUATTRO 4BA## 2WD 4WD |

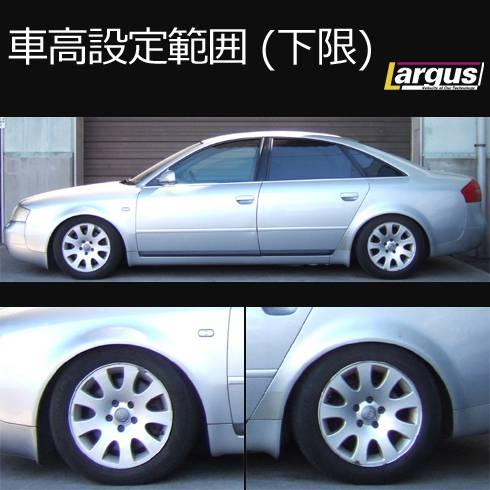

| Product Description | Car Manufacturer: AUDI Model: A6 (Quattro) Vehicle Model: 4BA## Year: 1997.09-2004.07 Drive System: 2WD/4WD Product: Full-Length Adjustable Coilover Kit SpecS Import Spring Rate F: 12kg Spring Rate R: 12kg Free Length F: 180mm Free Length R: 180mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Hex Wrench Damping Position R: Fixed Dial (Top of Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 587mm-677mm Vehicle Height Adjustment Range R (Reference Value): 604mm - 710mm Downward Amount F (Reference Value): - Downward Amount R (Reference Value): - |
| Remarks | *Damping force adjustment requires removal of shock absorbers / 30-stage front damping force adjustment *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011222001-QQ-1322 |
| Compatible Car | AUDI A6 QUATTRO 4BA## 2WD 4WD |
| Product Description | Car Manufacturer: AUDI Model: A6 (Quattro) Vehicle Model: 4BA## Year: 1997.09-2004.07 Drive System: 2WD/4WD Product: Full-Length Adjustable Coilover Kit SpecS Import Spring Rate F: 12kg Spring Rate R: 12kg Free Length F: 180mm Free Length R: 180mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Hex Wrench Damping Position R: Fixed Dial (Top of Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 587mm-677mm Vehicle Height Adjustment Range R (Reference Value): 604mm - 710mm Downward Amount F (Reference Value): - Downward Amount R (Reference Value): - |
| Remarks | *Damping force adjustment requires removal of shock absorbers / 30-stage front damping force adjustment *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
