LARGUS SPEC S COILOVER KIT FOR MAZDA AXELA HYBRID BYEFP 2WD 01011210020-QQ-1176
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210020-QQ-1176 |
| Compatible Car | MAZDA AXELA HYBRID BYEFP 2WD |
| Product Description | Car Manufacturer: Mazda Vehicle Model: Axela Hybrid Vehicle Model: BYEFP Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 7kg Spring Rate R: 4.3kg Free Length F: 220mm Free Length R: 258mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 630mm - 707mm Vehicle Height Adjustment Range R (Reference Value): 660mm - 695mm Lowering Amount F (Reference Value): -64mm to +13mm Down amount R (reference value): -50mm to -15mm |

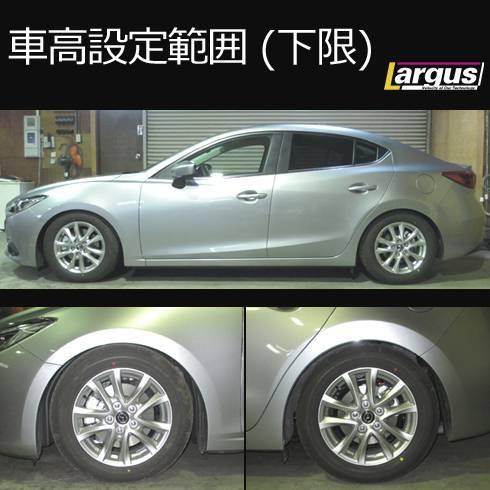

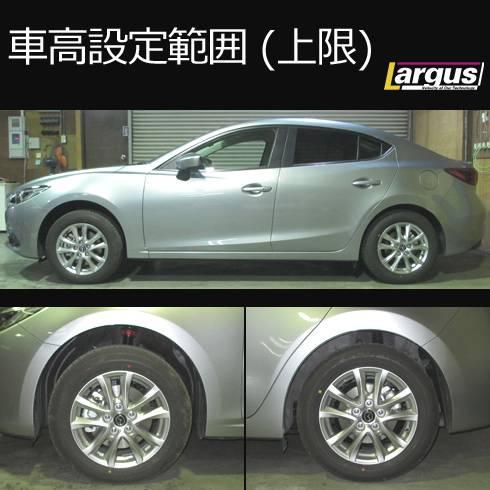

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210020-QQ-1176 |
| Compatible Car | MAZDA AXELA HYBRID BYEFP 2WD |
| Product Description | Car Manufacturer: Mazda Vehicle Model: Axela Hybrid Vehicle Model: BYEFP Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 7kg Spring Rate R: 4.3kg Free Length F: 220mm Free Length R: 258mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 630mm - 707mm Vehicle Height Adjustment Range R (Reference Value): 660mm - 695mm Lowering Amount F (Reference Value): -64mm to +13mm Down amount R (reference value): -50mm to -15mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
