LARGUS SPEC S COILOVER KIT FOR MAZDA DEMIO DE3AS 4WD 01011210005-QQ-1198
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210005-QQ-1198 |
| Compatible Car | MAZDA DEMIO DE3AS 4WD |
| Product Description | Car Manufacturer: Mazda Model: Demio Vehicle Model: DE3AS Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 170mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 577mm - 638mm Vehicle Height Adjustment Range R (Reference Value): 580mm - 620mm Lowering Amount F (Reference Value): -55mm to +6mm Down amount R (reference value): -68mm to -28mm |

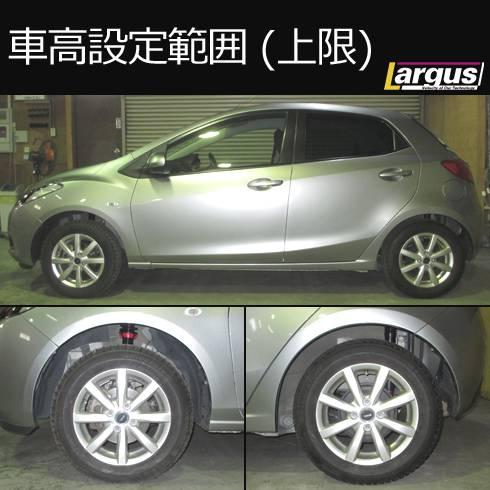

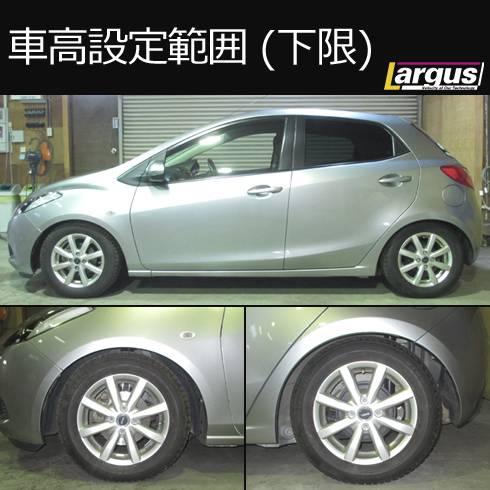

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210005-QQ-1198 |
| Compatible Car | MAZDA DEMIO DE3AS 4WD |
| Product Description | Car Manufacturer: Mazda Model: Demio Vehicle Model: DE3AS Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 170mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 577mm - 638mm Vehicle Height Adjustment Range R (Reference Value): 580mm - 620mm Lowering Amount F (Reference Value): -55mm to +6mm Down amount R (reference value): -68mm to -28mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$4.53
LARGUS SPEC S COILOVER KIT FOR MAZDA DEMIO DE3AS 4WD 01011210005-QQ-1198—
$4.53
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210005-QQ-1198 |
| Compatible Car | MAZDA DEMIO DE3AS 4WD |
| Product Description | Car Manufacturer: Mazda Model: Demio Vehicle Model: DE3AS Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 170mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 577mm - 638mm Vehicle Height Adjustment Range R (Reference Value): 580mm - 620mm Lowering Amount F (Reference Value): -55mm to +6mm Down amount R (reference value): -68mm to -28mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
