LARGUS

SPEC S COILOVER KIT

01011209143-QQ-1

TOYOTA SUPRA DB26 2WD

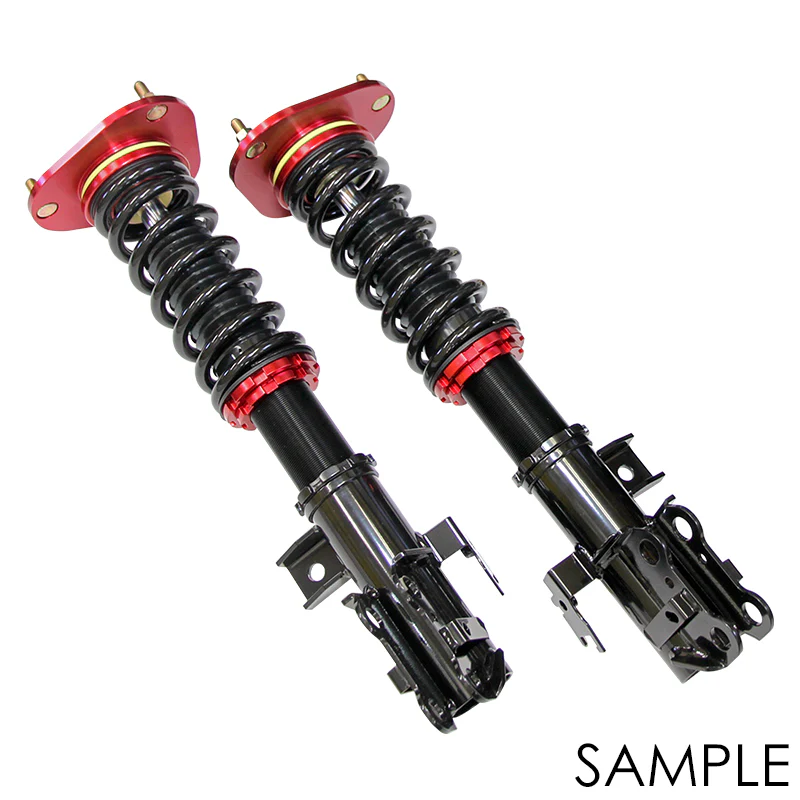

Product: Full-length adjustable suspension kit
Type: SpecS
Manufacturer: TOYOTA
Model: Supra
Vehicle model: DB26
Year: 2022/10~
Drive system: 2WD
Frequency: 5kg
Rear: 10kg
Free length: Fr: 170mm
Free length: Rr: 250mm
Front upper mount: Adjustable pillow
Rear upper mount: Fixed reinforced rubber
Front damping position: Fixed with dial (top of upper mount)
Rear damping position: Disc type (inside wheelhouse)

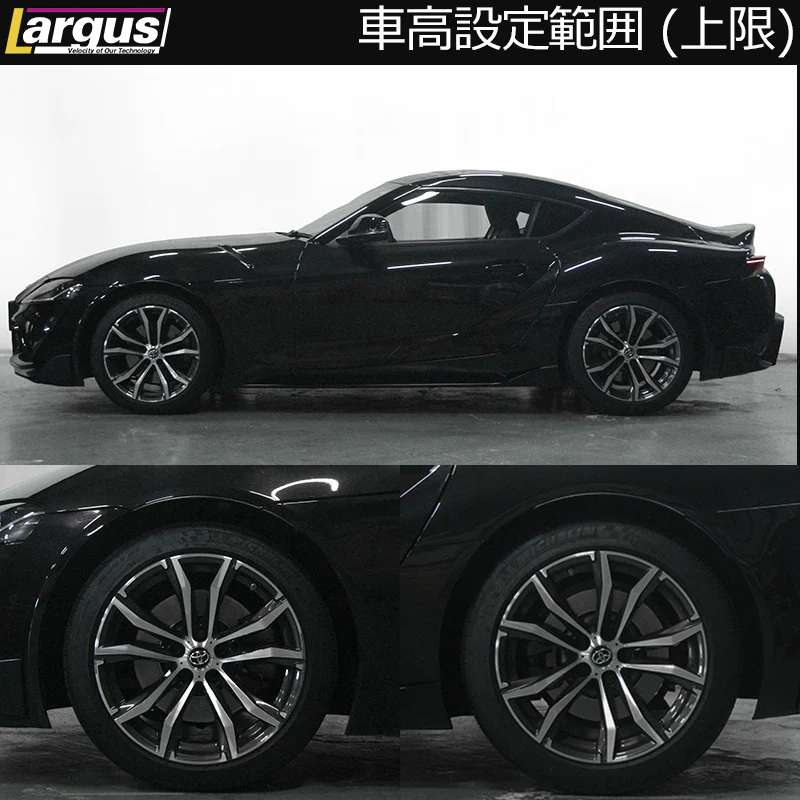

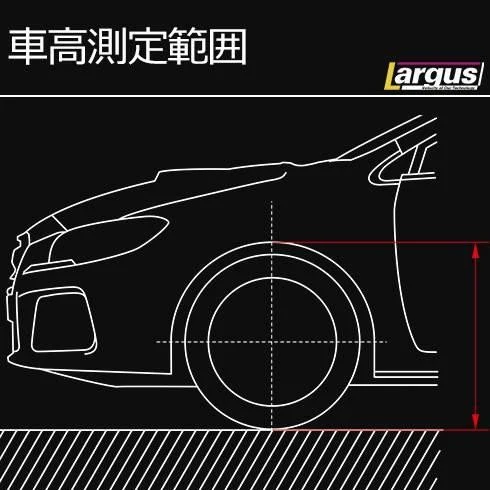

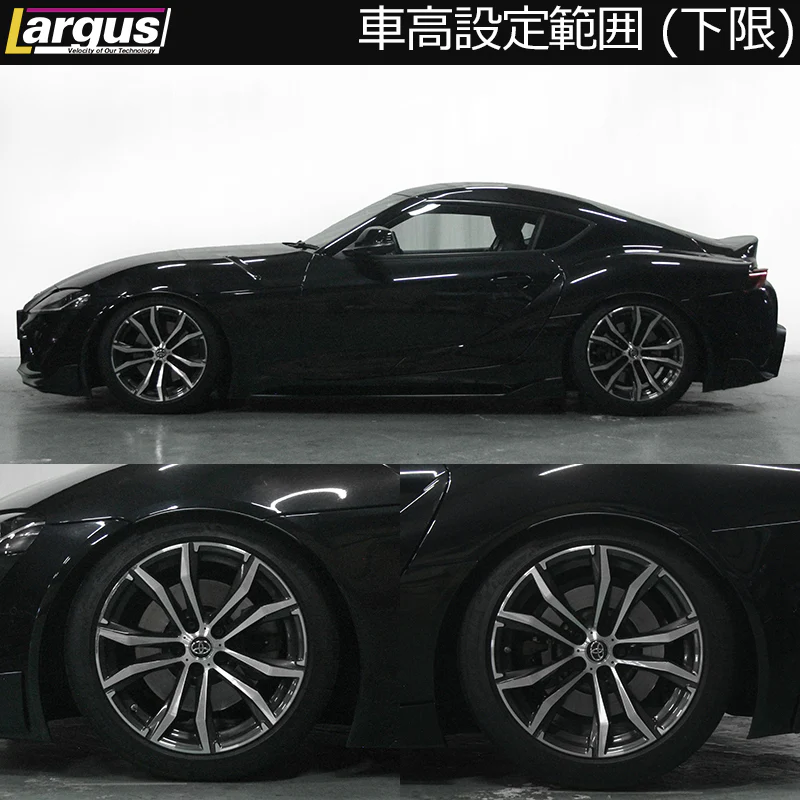

Front height adjustment range: 639mm - 694mm
Rear height adjustment range: 645mm - 706mm
Lowering amount: -53mm to +2mm
Down R: -52mm to +9mm

Although installation is possible on vehicles equipped with electronically controlled damper systems, a warning light will come on and the electronically controlled damper system will be disabled. Therefore, a separate canceller is required for installation. Adjusting the camber angle of the front adjustable pillow upper mounts requires removing and installing the coilovers. *The vehicle height setting range, lowering amount, and installation images are reference values based on a development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution is required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
