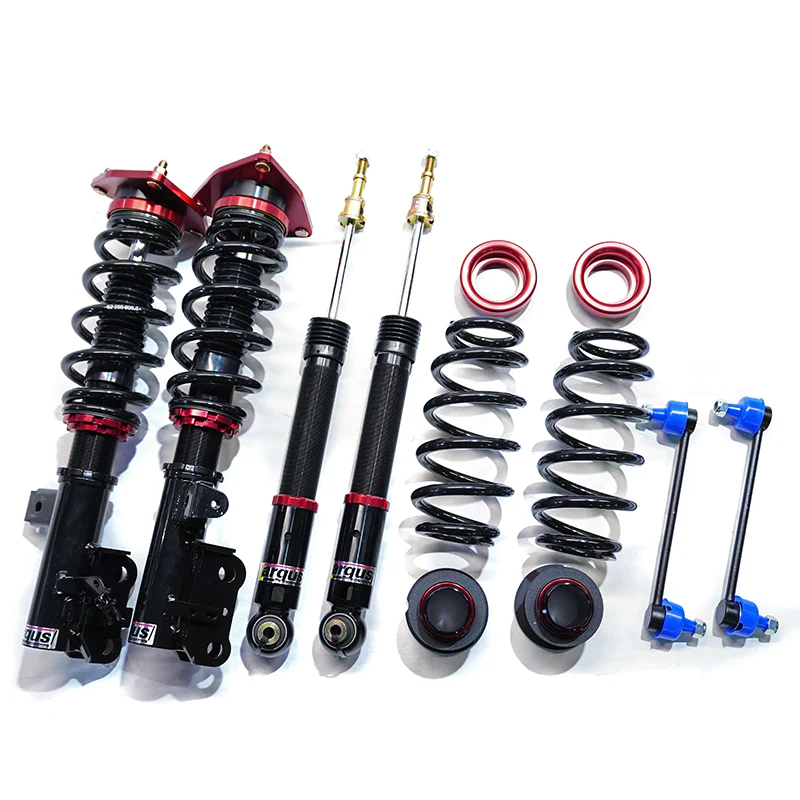

LARGUS SPEC S COILOVER KIT FOR TOYOTA CROWN CROSSOVER AZSH35 4WD 01011209134-QQ-1
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209134-QQ-1 |
| Compatible Car | TOYOTA CROWN CROSSOVER AZSH35 4WD |

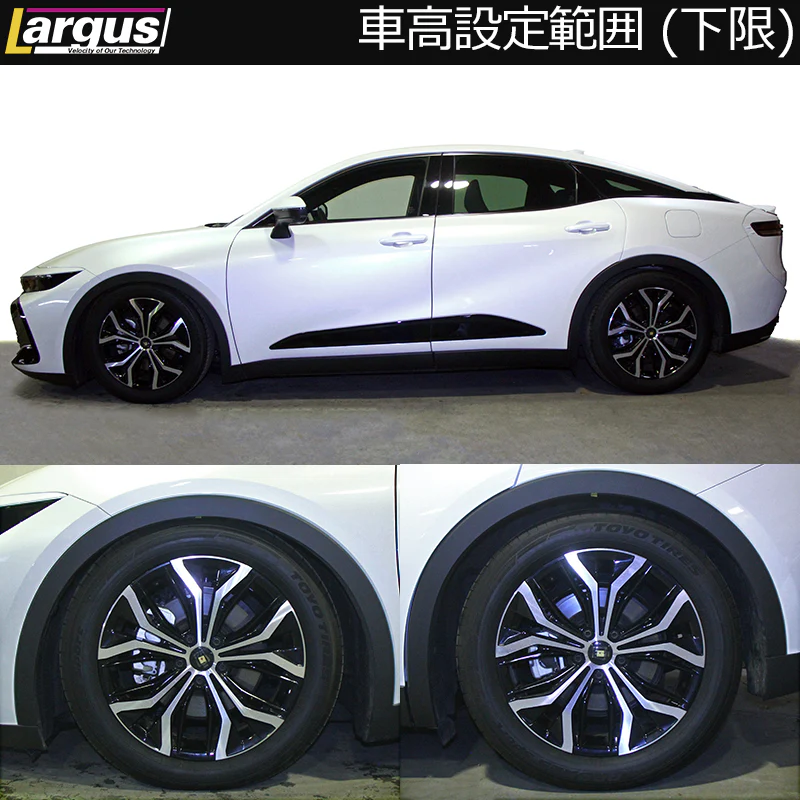

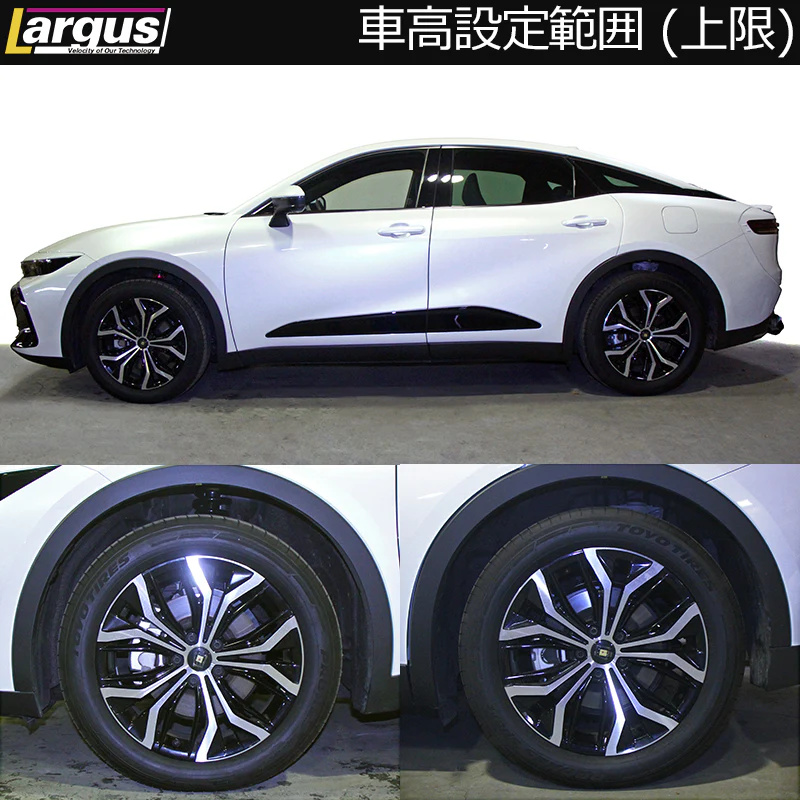

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Vehicle: Crown Crossover Vehicle model: AZSH35 Year: 2022/09~ Drive system: 4WD Frequency: 6.5kg Rear: 6kg Free length: 235mm Free length: 245mm Front upper mount: Fixed reinforced rubber Rear upper mount: Mountless Front damping position: Dial fixed (top of upper mount) Rear damping position: Disc type (inside wheelhouse) Front height adjustment range: 705mm - 779mm Rear height adjustment range: 756mm - 790mm Lowering amount: -73mm to +1mm Down R: -43mm to -9mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209134-QQ-1 |
| Compatible Car | TOYOTA CROWN CROSSOVER AZSH35 4WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Vehicle: Crown Crossover Vehicle model: AZSH35 Year: 2022/09~ Drive system: 4WD Frequency: 6.5kg Rear: 6kg Free length: 235mm Free length: 245mm Front upper mount: Fixed reinforced rubber Rear upper mount: Mountless Front damping position: Dial fixed (top of upper mount) Rear damping position: Disc type (inside wheelhouse) Front height adjustment range: 705mm - 779mm Rear height adjustment range: 756mm - 790mm Lowering amount: -73mm to +1mm Down R: -43mm to -9mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$5.35
LARGUS SPEC S COILOVER KIT FOR TOYOTA CROWN CROSSOVER AZSH35 4WD 01011209134-QQ-1—
$5.35
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209134-QQ-1 |
| Compatible Car | TOYOTA CROWN CROSSOVER AZSH35 4WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Vehicle: Crown Crossover Vehicle model: AZSH35 Year: 2022/09~ Drive system: 4WD Frequency: 6.5kg Rear: 6kg Free length: 235mm Free length: 245mm Front upper mount: Fixed reinforced rubber Rear upper mount: Mountless Front damping position: Dial fixed (top of upper mount) Rear damping position: Disc type (inside wheelhouse) Front height adjustment range: 705mm - 779mm Rear height adjustment range: 756mm - 790mm Lowering amount: -73mm to +1mm Down R: -43mm to -9mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
