LARGUS SPEC S COILOVER KIT FOR TOYOTA AQUA MXPK11 2WD 01011209122-QQ-3
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209122-QQ-3 |
| Compatible Car | TOYOTA AQUA MXPK11 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Aqua Vehicle model: MXPK11 Year: 2021/07-2025/08 Drive system: 2WD Spring rate (F): 4kg Spring rate (R): 2.5kg Free length (F): 220mm Free length (R): 245mm Upper mount (F): Mountless Upper mount (R): Mountless Fdamping position: Fixed by dial (upper upper mount) Fdamping position (R): Fixed by dial (upper upper mount) Vehicle height adjustment range (F): 596mm-661mm Vehicle height adjustment range (R): 617mm-665mm Lowering amount (F): -65mm to 0mm Down amount R: -67mm to -19mm |

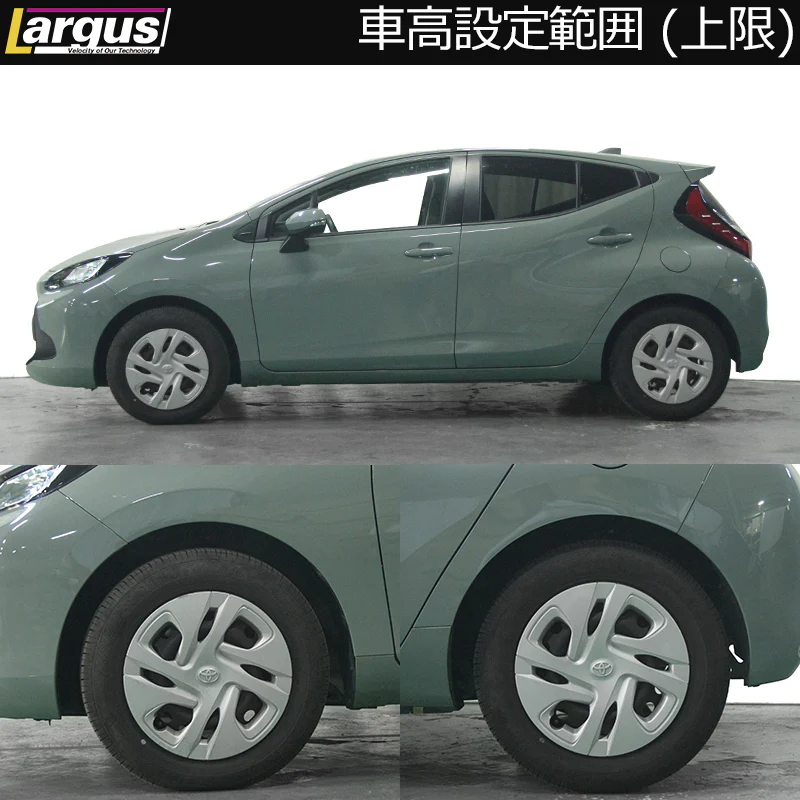

| Remarks | The rear minimum vehicle height data is measured with the rear adjuster lock ring removed and only the spring seat attached to the adjuster. [Dedicated instruction manual included] *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209122-QQ-3 |
| Compatible Car | TOYOTA AQUA MXPK11 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Aqua Vehicle model: MXPK11 Year: 2021/07-2025/08 Drive system: 2WD Spring rate (F): 4kg Spring rate (R): 2.5kg Free length (F): 220mm Free length (R): 245mm Upper mount (F): Mountless Upper mount (R): Mountless Fdamping position: Fixed by dial (upper upper mount) Fdamping position (R): Fixed by dial (upper upper mount) Vehicle height adjustment range (F): 596mm-661mm Vehicle height adjustment range (R): 617mm-665mm Lowering amount (F): -65mm to 0mm Down amount R: -67mm to -19mm |
| Remarks | The rear minimum vehicle height data is measured with the rear adjuster lock ring removed and only the spring seat attached to the adjuster. [Dedicated instruction manual included] *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$4.53
LARGUS SPEC S COILOVER KIT FOR TOYOTA AQUA MXPK11 2WD 01011209122-QQ-3—
$4.53
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209122-QQ-3 |
| Compatible Car | TOYOTA AQUA MXPK11 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Aqua Vehicle model: MXPK11 Year: 2021/07-2025/08 Drive system: 2WD Spring rate (F): 4kg Spring rate (R): 2.5kg Free length (F): 220mm Free length (R): 245mm Upper mount (F): Mountless Upper mount (R): Mountless Fdamping position: Fixed by dial (upper upper mount) Fdamping position (R): Fixed by dial (upper upper mount) Vehicle height adjustment range (F): 596mm-661mm Vehicle height adjustment range (R): 617mm-665mm Lowering amount (F): -65mm to 0mm Down amount R: -67mm to -19mm |
| Remarks | The rear minimum vehicle height data is measured with the rear adjuster lock ring removed and only the spring seat attached to the adjuster. [Dedicated instruction manual included] *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
