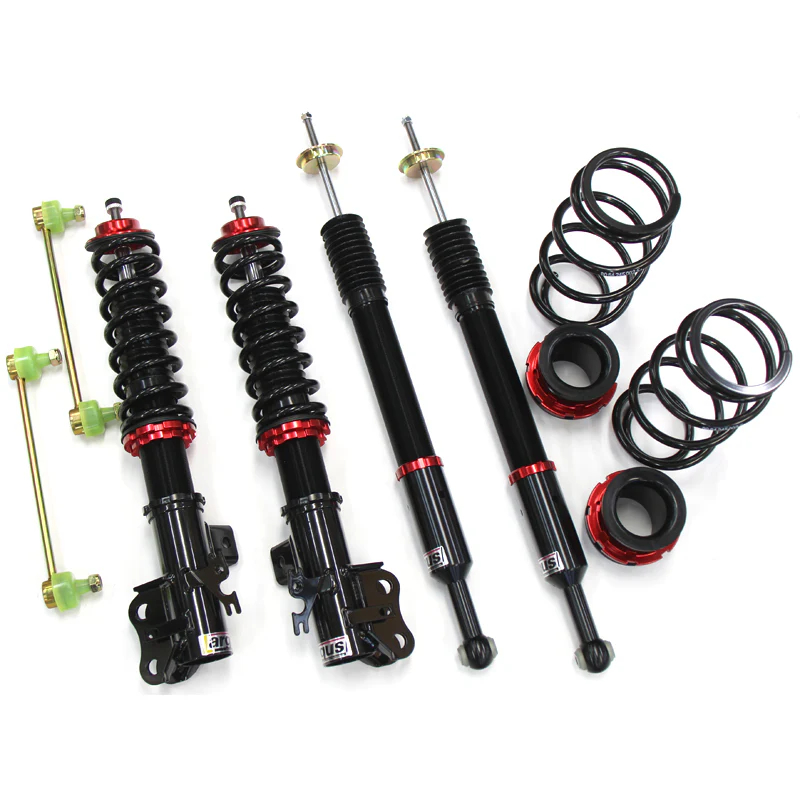

LARGUS SPEC S COILOVER KIT FOR TOYOTA YARIS MXPA10 2WD 01011209122-QQ-2
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209122-QQ-2 |
| Compatible Car | TOYOTA YARIS MXPA10 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Yaris Vehicle model: MXPA10 Year: 2020/02~ Drive system: 2WD Frequency: 4kg Rear: 2.5kg Free length: Fr: 220mm Free length: Rr: 245mm Upper mount: Front: Mountless Upper mount: Mountless Frequency: Fixed by dial (upper upper mount) Rear: Fixed by dial (upper upper mount) Height adjustment range: Fr: 573mm - 650mm Height adjustment range: Rr: 587mm - 648mm Lowering amount: Fr: -77mm to 0mm Down amount R: -73mm to -12mm |

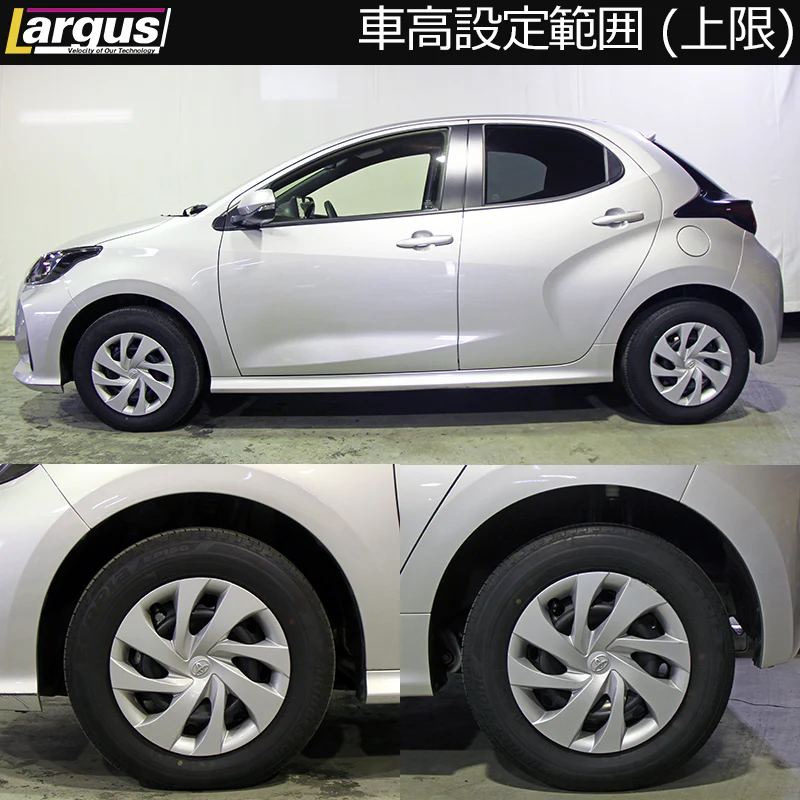

| Remarks | The minimum vehicle height data is measured with the rear adjuster lock ring removed and only the spring seat attached to the adjuster. [Dedicated instruction manual included] *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209122-QQ-2 |
| Compatible Car | TOYOTA YARIS MXPA10 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Yaris Vehicle model: MXPA10 Year: 2020/02~ Drive system: 2WD Frequency: 4kg Rear: 2.5kg Free length: Fr: 220mm Free length: Rr: 245mm Upper mount: Front: Mountless Upper mount: Mountless Frequency: Fixed by dial (upper upper mount) Rear: Fixed by dial (upper upper mount) Height adjustment range: Fr: 573mm - 650mm Height adjustment range: Rr: 587mm - 648mm Lowering amount: Fr: -77mm to 0mm Down amount R: -73mm to -12mm |
| Remarks | The minimum vehicle height data is measured with the rear adjuster lock ring removed and only the spring seat attached to the adjuster. [Dedicated instruction manual included] *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$4.53
LARGUS SPEC S COILOVER KIT FOR TOYOTA YARIS MXPA10 2WD 01011209122-QQ-2—
$4.53
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209122-QQ-2 |
| Compatible Car | TOYOTA YARIS MXPA10 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Yaris Vehicle model: MXPA10 Year: 2020/02~ Drive system: 2WD Frequency: 4kg Rear: 2.5kg Free length: Fr: 220mm Free length: Rr: 245mm Upper mount: Front: Mountless Upper mount: Mountless Frequency: Fixed by dial (upper upper mount) Rear: Fixed by dial (upper upper mount) Height adjustment range: Fr: 573mm - 650mm Height adjustment range: Rr: 587mm - 648mm Lowering amount: Fr: -77mm to 0mm Down amount R: -73mm to -12mm |
| Remarks | The minimum vehicle height data is measured with the rear adjuster lock ring removed and only the spring seat attached to the adjuster. [Dedicated instruction manual included] *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
