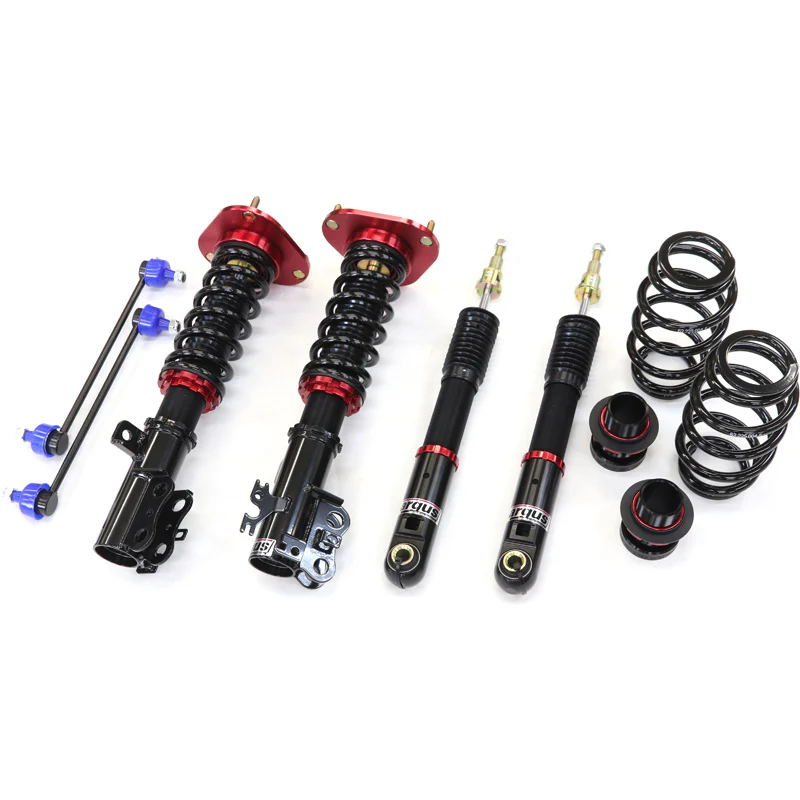

LARGUS SPEC S COILOVER KIT FOR TOYOTA COROLLA ZWE211 2WD 01011209113-QQ-8
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209113-QQ-8 |
| Compatible Car | TOYOTA COROLLA ZWE211 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: Corolla Vehicle Model: ZWE211 Year: 2019/10~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 4.5kg Free Length F: 200mm Free Length R: 225mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 604mm - 678mm Vehicle Height Adjustment Range R (Reference Value): 627mm - 680mm Lowering Amount F (Reference Value): -72mm to +2mm Down amount R (reference value): -48mm to +5mm |
| Remarks | To adjust the front damping force, you will need to drill holes in the steel panel above the upper mount, or disassemble or remove the coilovers. The vehicle height adjustment range and lowering amount are based on the ZRE212W. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209113-QQ-8 |
| Compatible Car | TOYOTA COROLLA ZWE211 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: Corolla Vehicle Model: ZWE211 Year: 2019/10~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 4.5kg Free Length F: 200mm Free Length R: 225mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 604mm - 678mm Vehicle Height Adjustment Range R (Reference Value): 627mm - 680mm Lowering Amount F (Reference Value): -72mm to +2mm Down amount R (reference value): -48mm to +5mm |
| Remarks | To adjust the front damping force, you will need to drill holes in the steel panel above the upper mount, or disassemble or remove the coilovers. The vehicle height adjustment range and lowering amount are based on the ZRE212W. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$1.62
Original: $4.63
-65%LARGUS SPEC S COILOVER KIT FOR TOYOTA COROLLA ZWE211 2WD 01011209113-QQ-8—
$4.63
$1.62Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209113-QQ-8 |
| Compatible Car | TOYOTA COROLLA ZWE211 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: Corolla Vehicle Model: ZWE211 Year: 2019/10~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 4.5kg Free Length F: 200mm Free Length R: 225mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 604mm - 678mm Vehicle Height Adjustment Range R (Reference Value): 627mm - 680mm Lowering Amount F (Reference Value): -72mm to +2mm Down amount R (reference value): -48mm to +5mm |
| Remarks | To adjust the front damping force, you will need to drill holes in the steel panel above the upper mount, or disassemble or remove the coilovers. The vehicle height adjustment range and lowering amount are based on the ZRE212W. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
