LARGUS

SPEC S COILOVER KIT

01011209113-QQ-14

TOYOTA COROLLA TOURING ZWE215W 4WD

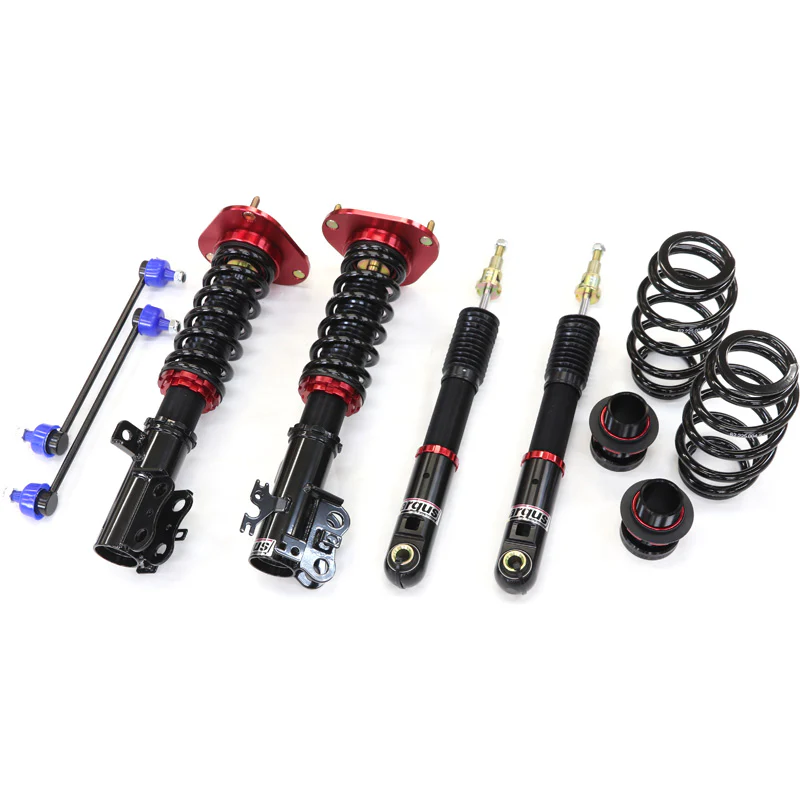

Product: Full-length adjustable suspension kit
Type: SpecS
Manufacturer: TOYOTA
Model: Corolla Touring
Vehicle model: ZWE215W
Year: 2022/10~
Drive system: 4WD
Frequency: 6kg
Rear: 4.5kg
Free length: 200mm
Free length: 225mm
Front upper mount: Fixed reinforced rubber
Rear upper mount: Mountless
Front damping position: Fixed dial (top of upper mount)
Rear damping position: Disc type (inside wheelhouse)

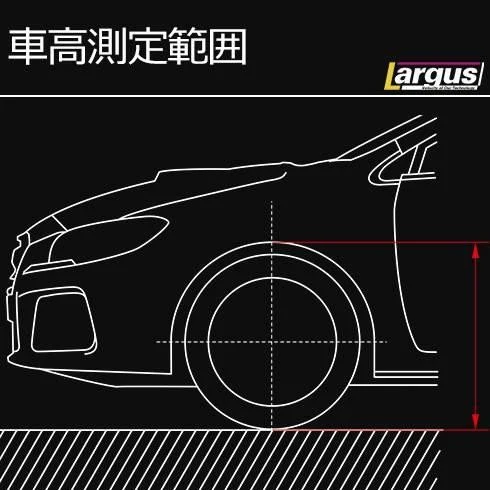

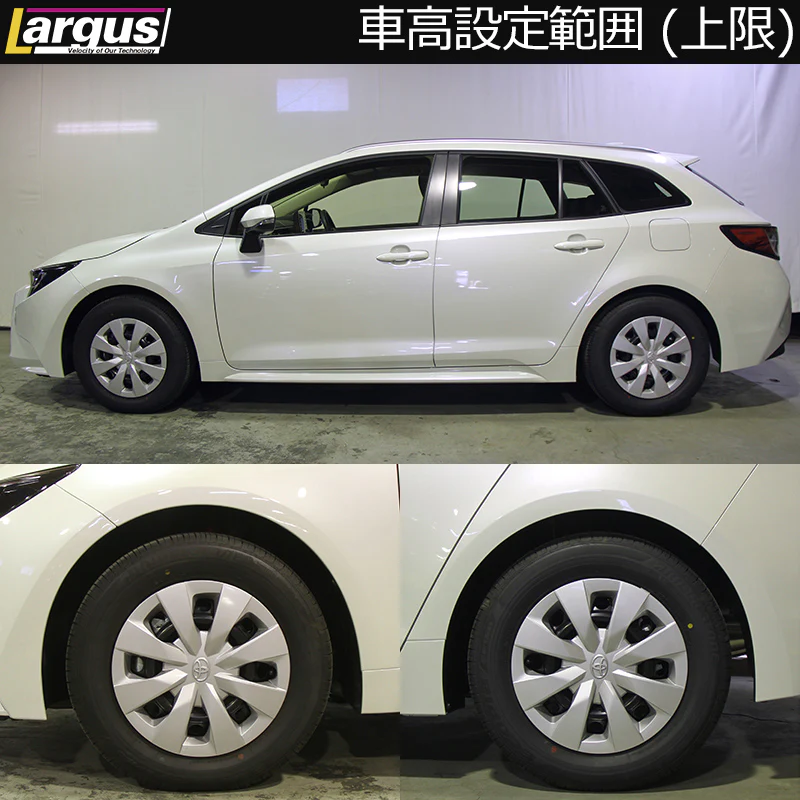

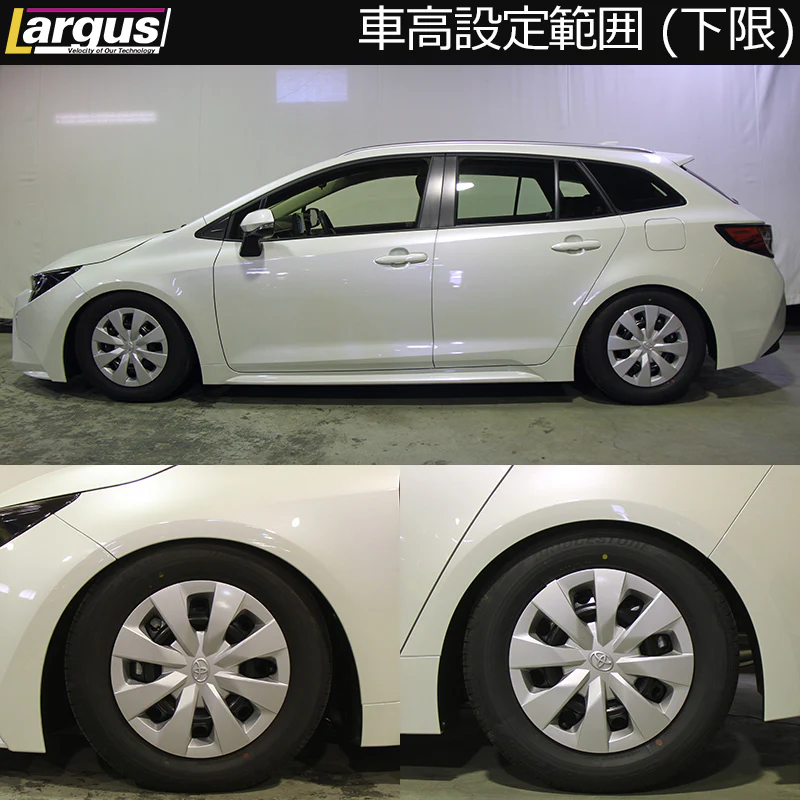

Front height adjustment range: 598mm - 670mm
Rear height adjustment range: 610mm - 664mm
Lowering amount: -69mm~+3mm
Down amount R: -58mm~-4mm

Adjusting the front damping dial requires disassembly or removal of the coilovers due to the steel panel on the upper mount. The vehicle height adjustment range and lowering amount are based on data from a ZWE214W (Corolla Touring). *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution will be required. *The specifications and accessories for this product are subject to change without notice for product improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
