LARGUS

SPEC S COILOVER KIT

01011209113-QQ-11

TOYOTA COROLLA ZWE219 2WD

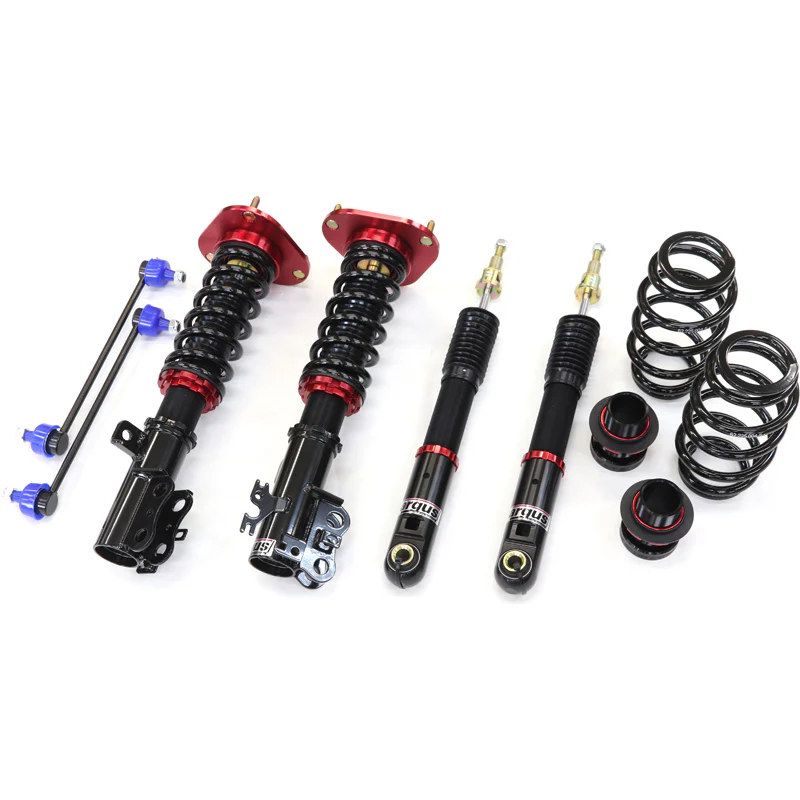

Product: Full-length adjustable suspension kit
Type: SpecS
Manufacturer: TOYOTA
Model: Corolla
Vehicle model: ZWE219
Year: 2022/10~
Drive system: 2WD
Frequency: 6kg
Rear: 4.5kg
Free length: F: 200mm
Free length: R: 225mm
Front upper mount: Fixed reinforced rubber
Rear upper mount: Mountless
Front damping position: Fixed dial (top of upper mount)
Rear damping position: Disc type (inside wheelhouse)

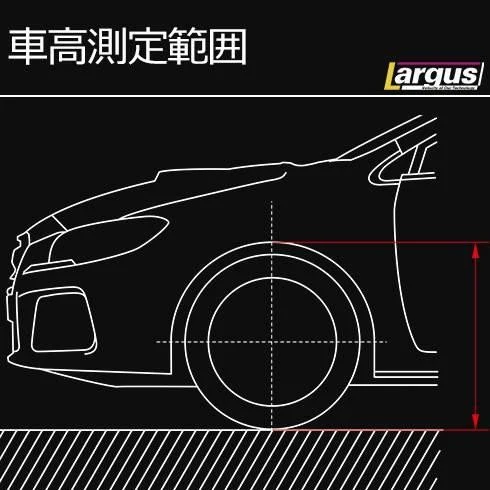

Front height adjustment range: 604mm - 678mm
Rear height adjustment range: 627mm - 680mm

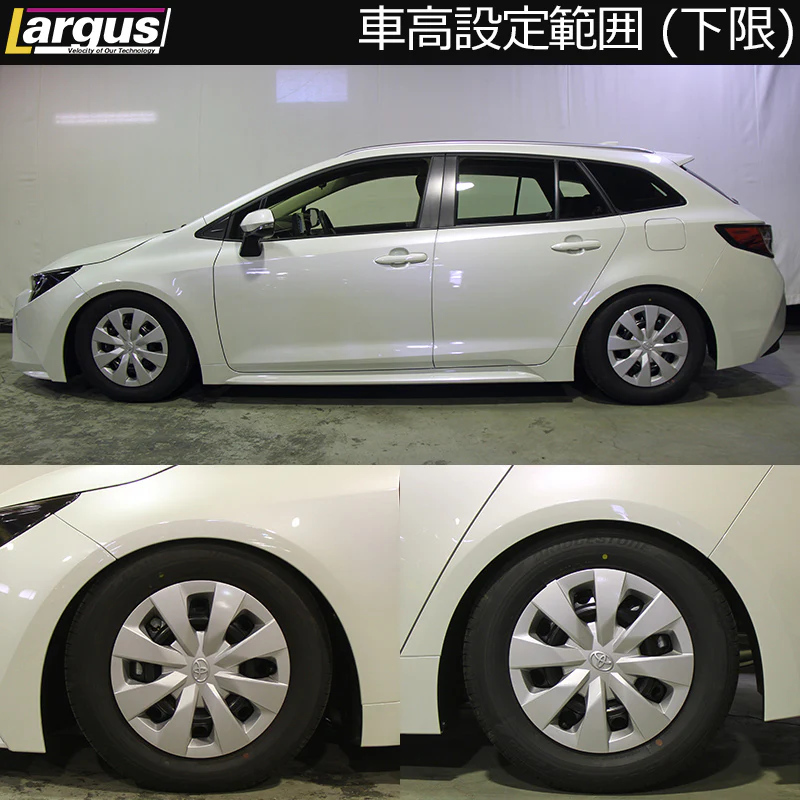

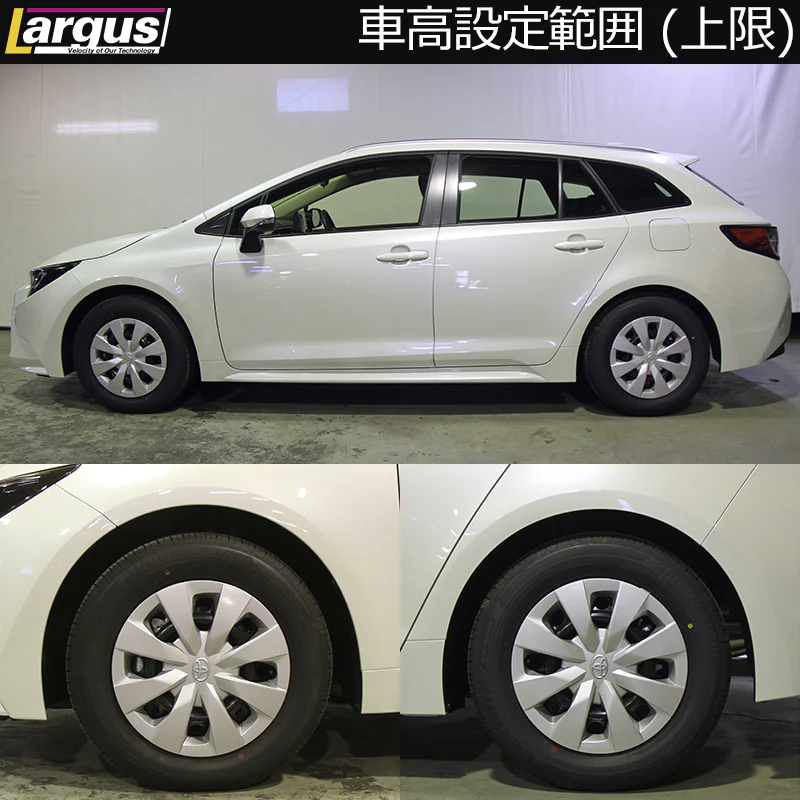

Lowering amount: -72mm to +2mm
Down R: -48mm to +5mm

To adjust the front damping force, you will need to drill holes in the steel panel above the upper mount, or disassemble or remove the coilovers. The vehicle height adjustment range and lowering amount are based on the ZRE212W. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes.
