LARGUS

SPEC S COILOVER KIT

01011209112-QQ-3

LEXUS IS300 ASE30 2WD

Product: Full-length adjustable suspension kit
Type: SpecS
Manufacturer: LEXUS
Model: IS300
Vehicle model: ASE30
Year: -
Drive system: 2WD
Spring rate (Front): 9kg
Spring rate (Rear): 9kg
Free length (Front): 240mm
Free length (Rear): 210mm
Upper mount (Front): Fixed, reinforced rubber
Upper mount (Rear): Fixed, reinforced rubber
Damping position (Front): Fixed with dial (upper upper mount)
Damping position (Rear): Fixed with dial (upper upper mount)

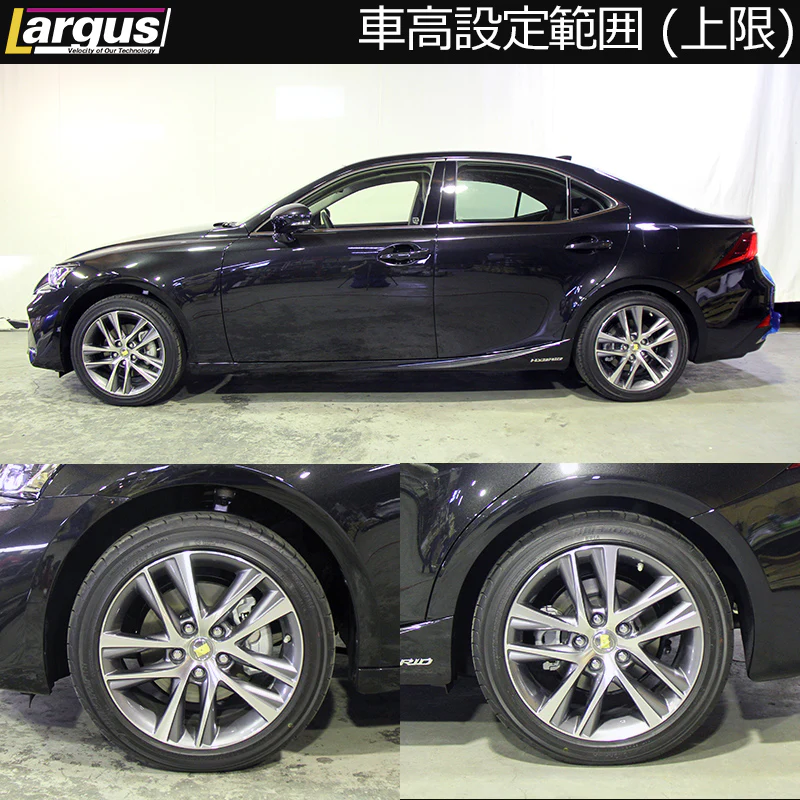

Vehicle height adjustment range (Front): 600mm - 684mm
Vehicle height adjustment range (Rear): 590mm - 671mm
Lowering amount (Front): -71mm to +13mm
Down R: -70mm to +11mm

*For models manufactured after October 2016 (after minor changes). The vehicle height adjustment range and lowering amount are based on the AVE30 data. *Includes two 350mm damping force adjustment dial extension cables. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
