LARGUS SPEC S COILOVER KIT FOR TOYOTA AQUA NHP10H 2WD 01011209110-QQ-1
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209110-QQ-1 |
| Compatible Car | TOYOTA AQUA NHP10H 2WD |

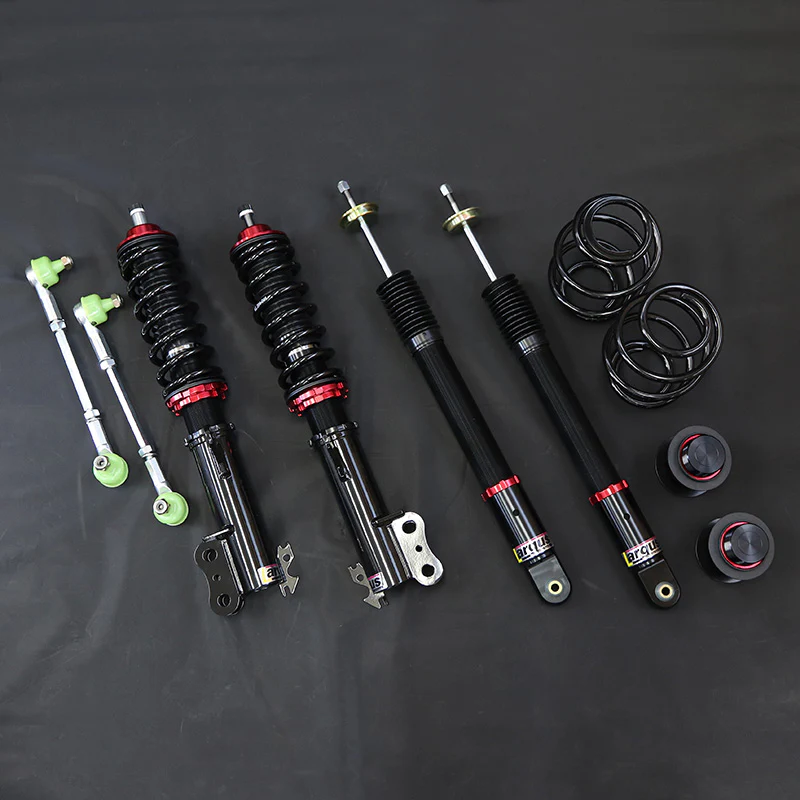

| Product Description | Car Manufacturer: Toyota Vehicle Model: Aqua Vehicle Model: NHP10H Year: 2017/07~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 205mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Separate Dial (Upper Mount) Damping Position R: Separate Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 601mm - 677mm Vehicle Height Adjustment Range R (Reference Value): 608mm - 666mm Lowering Amount F (Reference Value): -70mm to +6mm Down R (reference value): -69mm to -11mm |

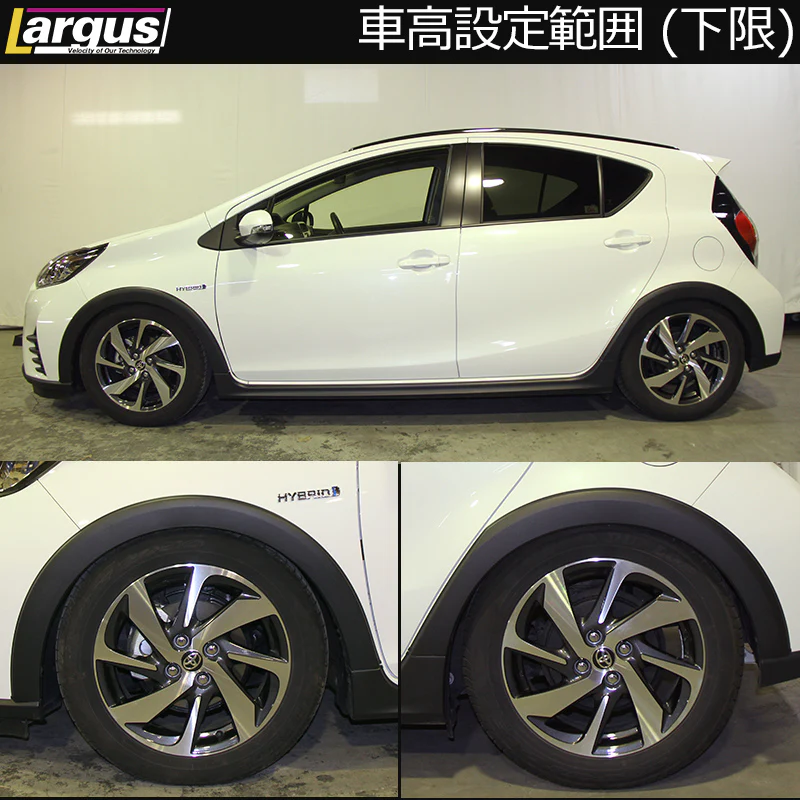

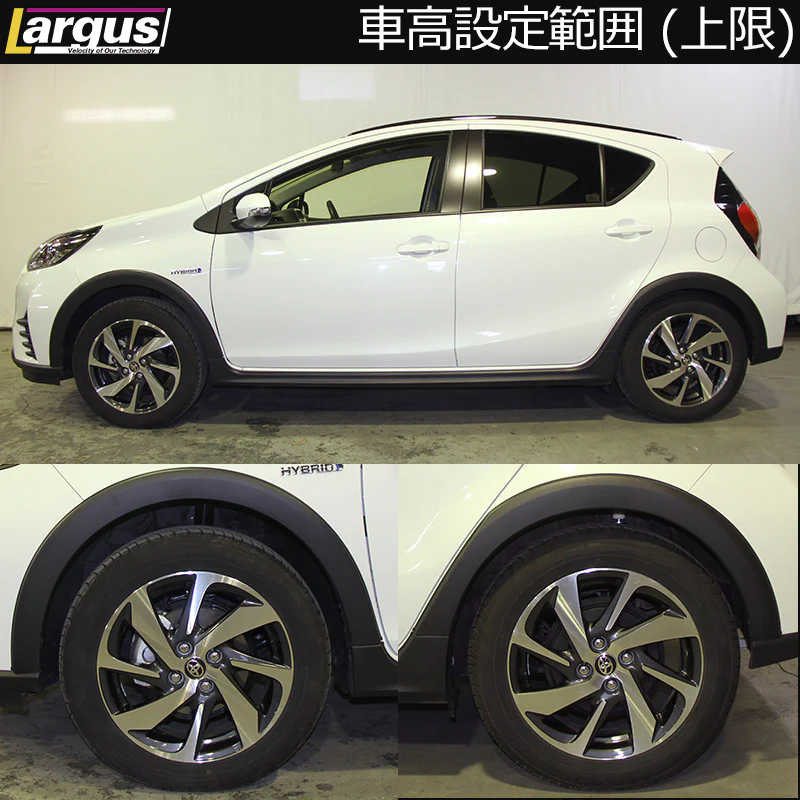

| Remarks | Grade: Crossover *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209110-QQ-1 |
| Compatible Car | TOYOTA AQUA NHP10H 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: Aqua Vehicle Model: NHP10H Year: 2017/07~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 205mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Separate Dial (Upper Mount) Damping Position R: Separate Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 601mm - 677mm Vehicle Height Adjustment Range R (Reference Value): 608mm - 666mm Lowering Amount F (Reference Value): -70mm to +6mm Down R (reference value): -69mm to -11mm |
| Remarks | Grade: Crossover *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$5.61
LARGUS SPEC S COILOVER KIT FOR TOYOTA AQUA NHP10H 2WD 01011209110-QQ-1—
$5.61
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209110-QQ-1 |
| Compatible Car | TOYOTA AQUA NHP10H 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: Aqua Vehicle Model: NHP10H Year: 2017/07~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 205mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Separate Dial (Upper Mount) Damping Position R: Separate Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 601mm - 677mm Vehicle Height Adjustment Range R (Reference Value): 608mm - 666mm Lowering Amount F (Reference Value): -70mm to +6mm Down R (reference value): -69mm to -11mm |
| Remarks | Grade: Crossover *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
