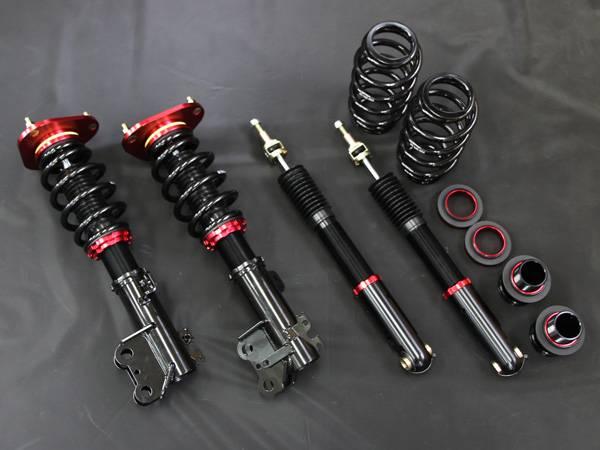

LARGUS SPEC S COILOVER KIT FOR TOYOTA C-HR ZYX10 2WD 01011209106-QQ-1
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209106-QQ-1 |
| Compatible Car | TOYOTA C-HR ZYX10 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: C-HR Vehicle Model: ZYX10 Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 4kg Free Length F: 190mm Free Length R: 240mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Separate Dial (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 650mm - 732mm Vehicle Height Adjustment Range R (Reference Value): 672mm - 744mm Lowering Amount F (Reference Value): -76mm to +6mm Down amount R (reference value): -79mm to -7mm |

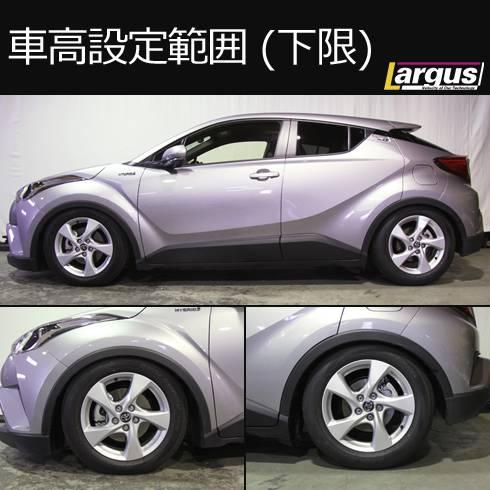

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209106-QQ-1 |
| Compatible Car | TOYOTA C-HR ZYX10 2WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: C-HR Vehicle Model: ZYX10 Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 4kg Free Length F: 190mm Free Length R: 240mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Separate Dial (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 650mm - 732mm Vehicle Height Adjustment Range R (Reference Value): 672mm - 744mm Lowering Amount F (Reference Value): -76mm to +6mm Down amount R (reference value): -79mm to -7mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
