LARGUS SPEC S COILOVER KIT FOR TOYOTA RAV4 ACA21W 4WD 01011209079-QQ-21
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209079-QQ-21 |
| Compatible Car | TOYOTA RAV4 ACA21W 4WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: RAV4 Vehicle Model: ACA21W Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 6kg Free Length F: 220mm Free Length R: 160mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Fixed with Dial (Upper Mount) Damping Position R: Hex Wrench Vehicle Height Adjustment Range F (Reference Value): 665mm - 770mm Vehicle Height Adjustment Range R (Reference Value): 700mm - 753mm Lowering Amount F (Reference Value): - Lowering Amount R (Reference Value): - |

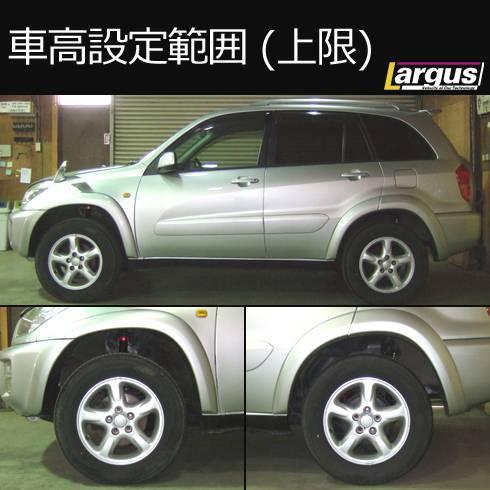

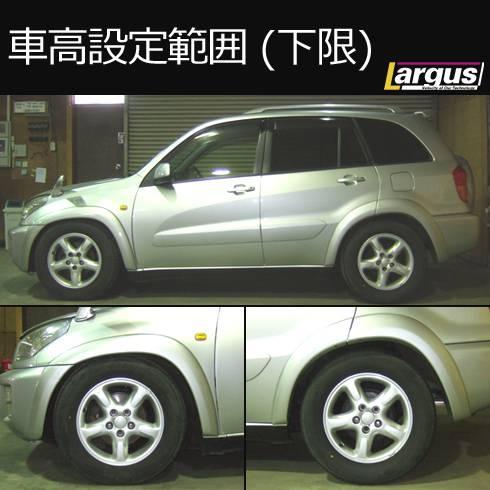

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209079-QQ-21 |
| Compatible Car | TOYOTA RAV4 ACA21W 4WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: RAV4 Vehicle Model: ACA21W Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 6kg Free Length F: 220mm Free Length R: 160mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Fixed with Dial (Upper Mount) Damping Position R: Hex Wrench Vehicle Height Adjustment Range F (Reference Value): 665mm - 770mm Vehicle Height Adjustment Range R (Reference Value): 700mm - 753mm Lowering Amount F (Reference Value): - Lowering Amount R (Reference Value): - |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$4.97
LARGUS SPEC S COILOVER KIT FOR TOYOTA RAV4 ACA21W 4WD 01011209079-QQ-21—
$4.97
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209079-QQ-21 |
| Compatible Car | TOYOTA RAV4 ACA21W 4WD |
| Product Description | Car Manufacturer: Toyota Vehicle Model: RAV4 Vehicle Model: ACA21W Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 6kg Free Length F: 220mm Free Length R: 160mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Fixed with Dial (Upper Mount) Damping Position R: Hex Wrench Vehicle Height Adjustment Range F (Reference Value): 665mm - 770mm Vehicle Height Adjustment Range R (Reference Value): 700mm - 753mm Lowering Amount F (Reference Value): - Lowering Amount R (Reference Value): - |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
