LARGUS SPEC S COILOVER KIT FOR NISSAN FIGARO FK10 2WD 01011207087-QQ-1
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011207087-QQ-1 |
| Compatible Car | NISSAN FIGARO FK10 2WD |

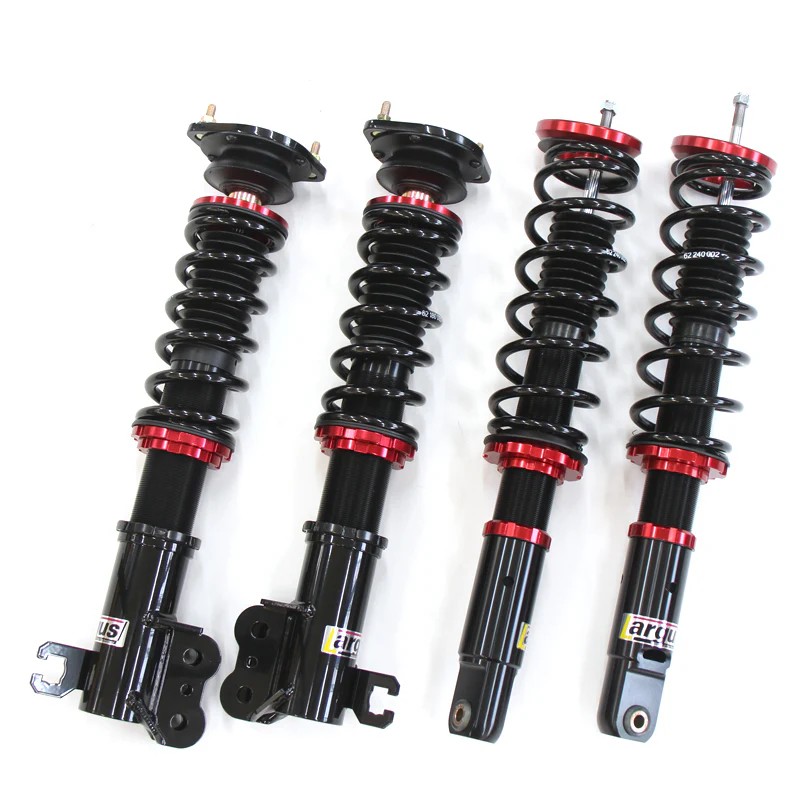

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: NISSAN Model: Figaro Vehicle model: FK10 Year: 1991/02-1992/02 Drive system: 2WD Frequency: 5kg Rear: 2kg Free length: 180mm Free length: 240mm Front upper mount: [Special] Fixed reinforced rubber Rear upper mount: Mountless Front damping position: Fixed dial (upper upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 530mm-606mm Rear height adjustment range: 538mm to 590mm F Lowering Amount: -72mm to +4mm R Lowering Amount: -60mm to -8mm |

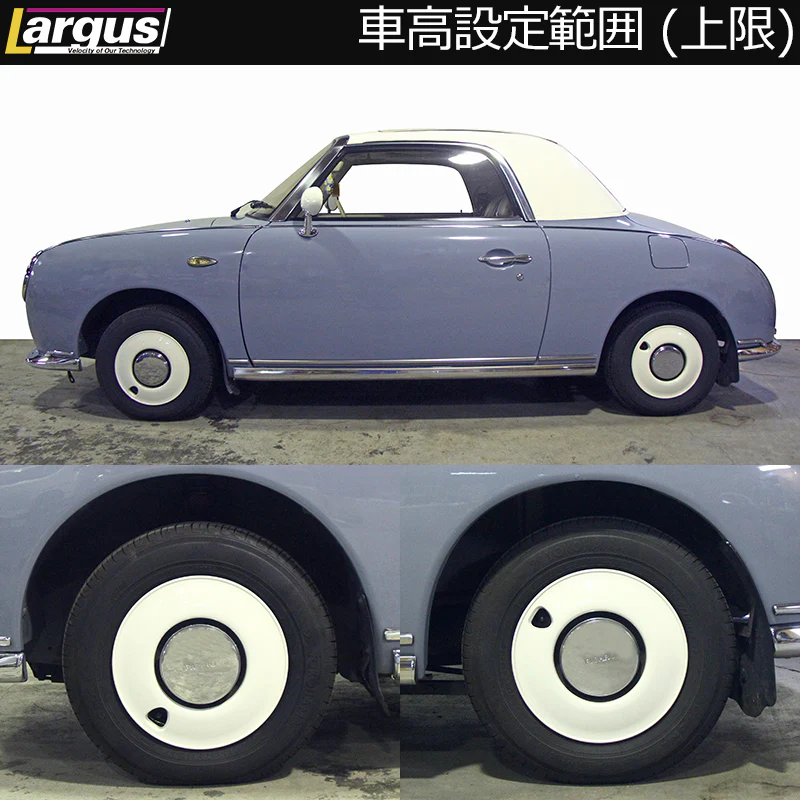

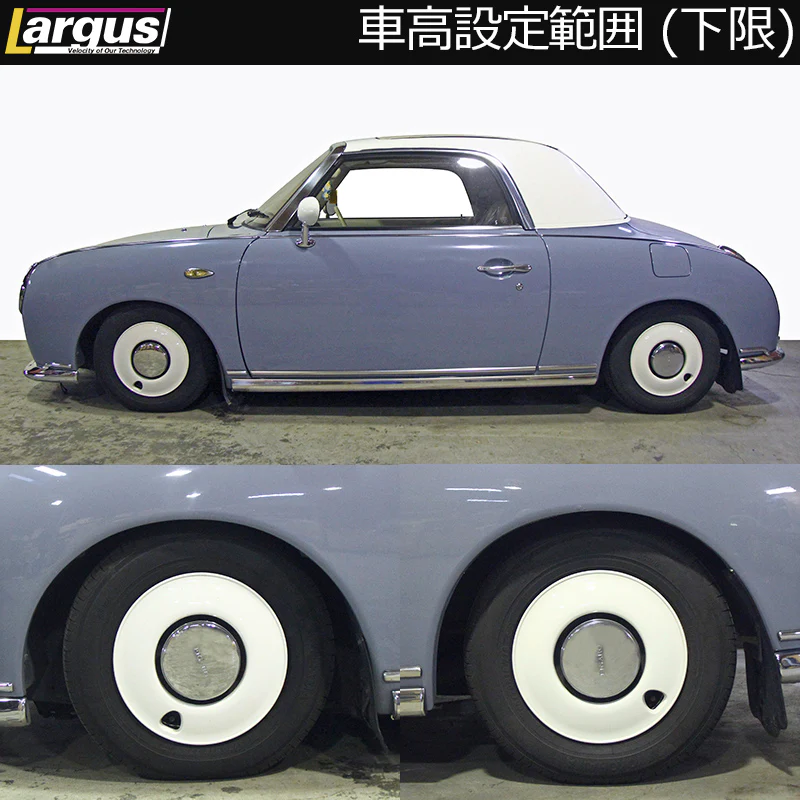

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011207087-QQ-1 |
| Compatible Car | NISSAN FIGARO FK10 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: NISSAN Model: Figaro Vehicle model: FK10 Year: 1991/02-1992/02 Drive system: 2WD Frequency: 5kg Rear: 2kg Free length: 180mm Free length: 240mm Front upper mount: [Special] Fixed reinforced rubber Rear upper mount: Mountless Front damping position: Fixed dial (upper upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 530mm-606mm Rear height adjustment range: 538mm to 590mm F Lowering Amount: -72mm to +4mm R Lowering Amount: -60mm to -8mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
