LARGUS SPEC S COILOVER KIT FOR NISSAN ELGRAND PNE52 4WD 01011207038-QQ-626
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011207038-QQ-626 |
| Compatible Car | NISSAN ELGRAND PNE52 4WD |

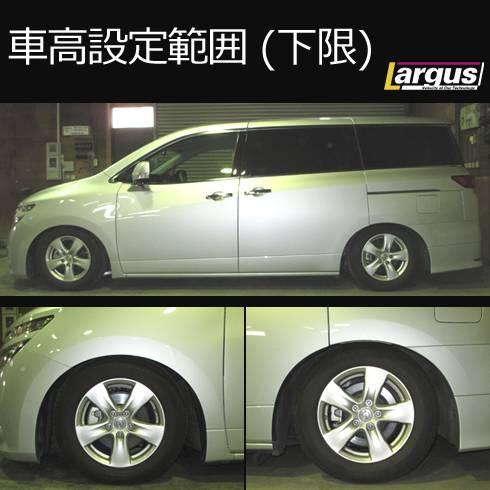

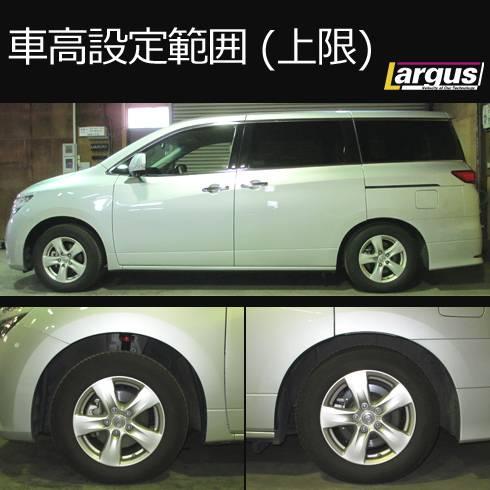

| Product Description | Car Manufacturer: Nissan Vehicle: Elgrand Vehicle Model: PNE52 Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 7kg Spring Rate R: 10kg Free Length F: 200mm Free Length R: 230mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 646mm - 735mm Vehicle Height Adjustment Range R (Reference Value): 655mm - 710mm Lowering Amount F (Reference Value): -95mm to -6mm Down amount R (reference value): -80mm to -25mm |
| Remarks | *The shock absorbers must be removed to adjust the front damping force. Damping force can be adjusted by drilling holes. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011207038-QQ-626 |
| Compatible Car | NISSAN ELGRAND PNE52 4WD |
| Product Description | Car Manufacturer: Nissan Vehicle: Elgrand Vehicle Model: PNE52 Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 7kg Spring Rate R: 10kg Free Length F: 200mm Free Length R: 230mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 646mm - 735mm Vehicle Height Adjustment Range R (Reference Value): 655mm - 710mm Lowering Amount F (Reference Value): -95mm to -6mm Down amount R (reference value): -80mm to -25mm |
| Remarks | *The shock absorbers must be removed to adjust the front damping force. Damping force can be adjusted by drilling holes. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
