LARGUS

SPEC S COILOVER KIT

01011207021-QQ-779

NISSAN PRIMERA WAGON WHP11 2WD

Product: Full-length adjustable suspension kit
Type: SpecS
Manufacturer: NISSAN
Vehicle model: Primera Wagon
Vehicle model: WHP11
Year: -
Drive system: 2WD
Spring rate F: 8kg
Spring rate R: 4.5kg
Free length F: 200mm
Free length R: 200mm
Upper mount F: Fixed reinforced rubber
Upper mount R: Fixed reinforced rubber
Damping position F: Fixed with dial (top of upper mount)
Damping position R: Fixed with dial (top of upper mount)

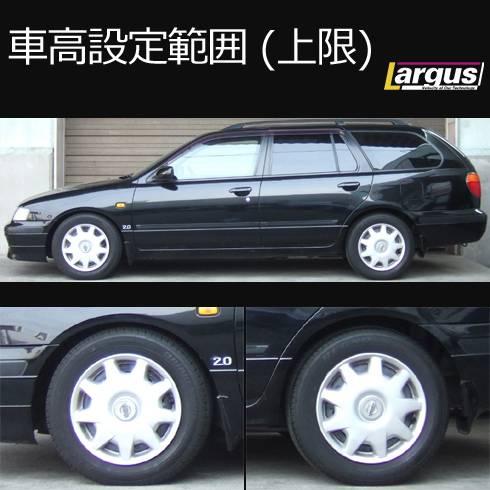

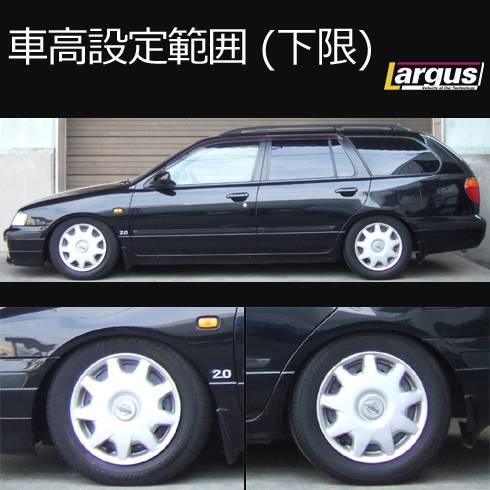

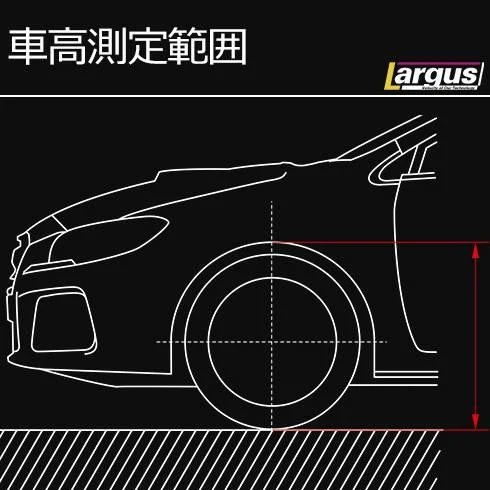

Vehicle height adjustment range F: 580mm - 650mm
Vehicle height adjustment range R: 580mm - 635mm
Lowering amount F: -
Lowering amount R : -

[Please check your vehicle] The front upper mount serration bolts are M10, three-bolt type. The distance between the rear upper mount serration bolts is 90mm. *Cannot be used with the factory front tower bar. *The upper part of the rear shock absorber (damping dial) interferes with the body, so drilling or removing the damping dial is required for installation. *The vehicle height setting range, lowering amount, and installation images are reference values based on a development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
