LARGUS

SPEC S COILOVER KIT

01011207021-QQ-774

NISSAN PRIMERA P11 2WD

Product: Full-length adjustable suspension kit
Type: SpecS
Manufacturer: NISSAN
Model: Primera
Vehicle model: P11
Year: -
Drive system: 2WD
Spring rate (F): 8kg
Spring rate (R): 4.5kg
Free length (F): 200mm
Free length (R): 200mm
Upper mount (F): Fixed reinforced rubber
Upper mount (R): Fixed reinforced rubber
F damping position: Fixed with dial (upper part of upper mount)
F damping position (R): Fixed with dial (upper part of upper mount)

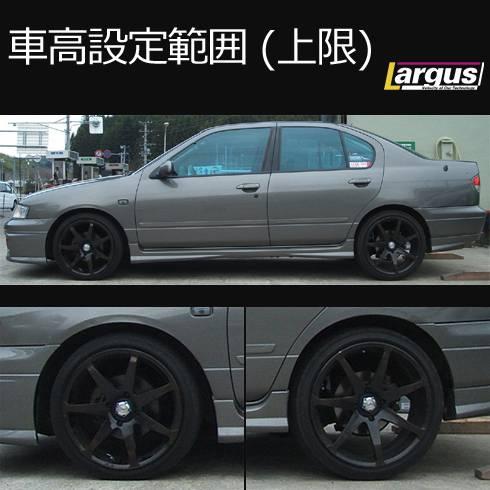

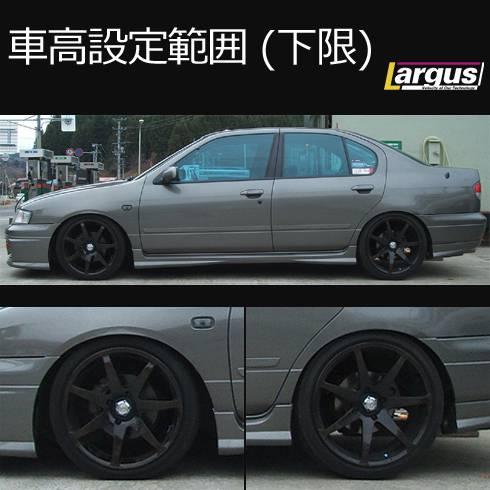

Vehicle height adjustment range (F): 570mm - 650mm
Vehicle height adjustment range (R): 600mm - 660mm
F lowering amount (F): -
F lowering amount (R): -

[Please check your vehicle] The front upper mount serration bolts are M10 triple-bolt type. The distance between the rear upper mount serration bolts is 90mm. *Cannot be used with the front factory tower bar. *Vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle differences and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be illuminated, so a separate canceller or other countermeasure will be required. *Product specifications and accessories are subject to change without notice for product improvement purposes.
CAN ONLY BE SHIPPED WITH UPS OR FEDEX

Images are for illustration purpose only. Actual product may vary.
