LARGUS SPEC S COILOVER KIT FOR HONDA CR-V RM4 4WD 01011203039-QQ-835
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011203039-QQ-835 |
| Compatible Car | HONDA CR-V RM4 4WD |

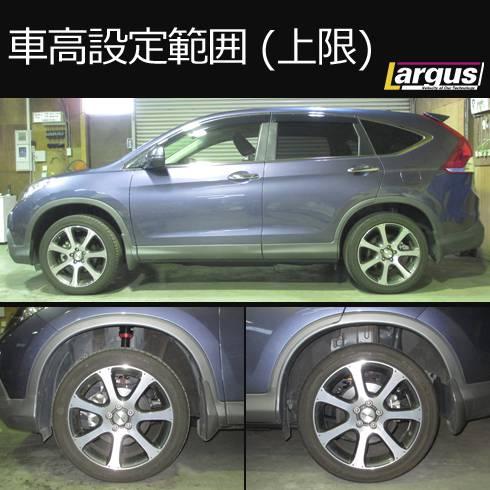

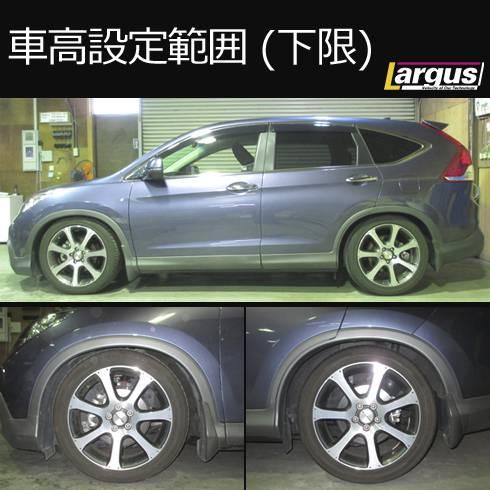

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: HONDA Model: CR-V Vehicle model: RM4 Year: - Drive system: 4WD Spring rate (Front): 6kg Spring rate (Rear): 10kg Free length (Front): 220mm Free length (Rear): 220mm Upper mount (Front): Fixed reinforced rubber Upper mount (Rear): Mountless Damping position (Front): Fixed with dial (upper upper mount) Damping position (Rear): Fixed with dial (upper upper mount) Vehicle height adjustment range (Front): 682mm - 790mm Vehicle height adjustment range (Rear): 715mm - 780mm Lowering amount (Front): -100mm to +8mm Down R: -70mm to -5mm |
| Remarks | *When using the damping force adjustment dial extension cable, the interior steel plate must be modified. *Two 150mm damping force adjustment dial extension cables are included. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011203039-QQ-835 |
| Compatible Car | HONDA CR-V RM4 4WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: HONDA Model: CR-V Vehicle model: RM4 Year: - Drive system: 4WD Spring rate (Front): 6kg Spring rate (Rear): 10kg Free length (Front): 220mm Free length (Rear): 220mm Upper mount (Front): Fixed reinforced rubber Upper mount (Rear): Mountless Damping position (Front): Fixed with dial (upper upper mount) Damping position (Rear): Fixed with dial (upper upper mount) Vehicle height adjustment range (Front): 682mm - 790mm Vehicle height adjustment range (Rear): 715mm - 780mm Lowering amount (Front): -100mm to +8mm Down R: -70mm to -5mm |
| Remarks | *When using the damping force adjustment dial extension cable, the interior steel plate must be modified. *Two 150mm damping force adjustment dial extension cables are included. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$5.09
LARGUS SPEC S COILOVER KIT FOR HONDA CR-V RM4 4WD 01011203039-QQ-835—
$5.09
Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011203039-QQ-835 |
| Compatible Car | HONDA CR-V RM4 4WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: HONDA Model: CR-V Vehicle model: RM4 Year: - Drive system: 4WD Spring rate (Front): 6kg Spring rate (Rear): 10kg Free length (Front): 220mm Free length (Rear): 220mm Upper mount (Front): Fixed reinforced rubber Upper mount (Rear): Mountless Damping position (Front): Fixed with dial (upper upper mount) Damping position (Rear): Fixed with dial (upper upper mount) Vehicle height adjustment range (Front): 682mm - 790mm Vehicle height adjustment range (Rear): 715mm - 780mm Lowering amount (Front): -100mm to +8mm Down R: -70mm to -5mm |
| Remarks | *When using the damping force adjustment dial extension cable, the interior steel plate must be modified. *Two 150mm damping force adjustment dial extension cables are included. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
