LARGUS SPEC S COILOVER KIT FOR HONDA STEP WGN RG3 2WD 01011203011-QQ-966
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011203011-QQ-966 |
| Compatible Car | HONDA STEP WGN RG3 2WD |
| Product Description | Car Manufacturer: Honda Vehicle Model: Step WGN Vehicle Model: RG3 Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 5kg Free Length F: 220mm Free Length R: 180mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 605mm - 700mm Vehicle Height Adjustment Range R (Reference Value): 645mm - 685mm Lowering Amount F (Reference Value): -95mm to -35mm Down amount R (reference value): -65mm to -25mm |

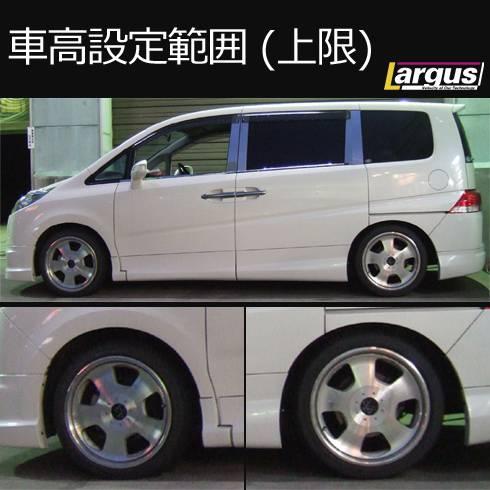

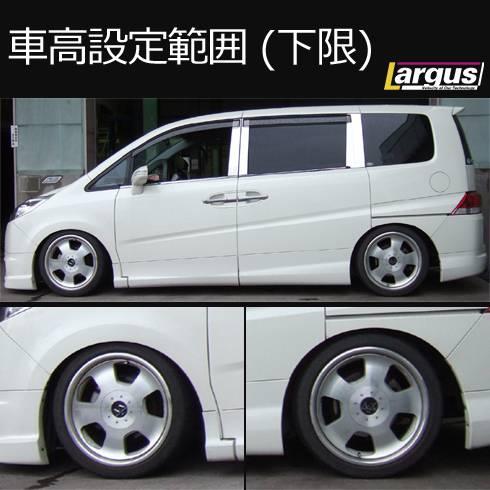

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011203011-QQ-966 |
| Compatible Car | HONDA STEP WGN RG3 2WD |
| Product Description | Car Manufacturer: Honda Vehicle Model: Step WGN Vehicle Model: RG3 Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 5kg Free Length F: 220mm Free Length R: 180mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 605mm - 700mm Vehicle Height Adjustment Range R (Reference Value): 645mm - 685mm Lowering Amount F (Reference Value): -95mm to -35mm Down amount R (reference value): -65mm to -25mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$1.66
Original: $4.74
-65%LARGUS SPEC S COILOVER KIT FOR HONDA STEP WGN RG3 2WD 01011203011-QQ-966—
$4.74
$1.66Description
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011203011-QQ-966 |
| Compatible Car | HONDA STEP WGN RG3 2WD |
| Product Description | Car Manufacturer: Honda Vehicle Model: Step WGN Vehicle Model: RG3 Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 6kg Spring Rate R: 5kg Free Length F: 220mm Free Length R: 180mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 605mm - 700mm Vehicle Height Adjustment Range R (Reference Value): 645mm - 685mm Lowering Amount F (Reference Value): -95mm to -35mm Down amount R (reference value): -65mm to -25mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
